Corner condensate pump P12C - flow rate 12 litres/hour, suitable for splits up to 30,000 BTU/hour (8.8 kW) reliable, robust and silent
WIPCOOL offers the world's most comprehensive and best performing range of mini pumps.
Widely applied to split, ducted and cassette type air conditioning units, as well as other appliances that produce small amounts of condensate.
Equipped with brushless (brushless) motor, safety switch, and probe sensor that maintain the high performance of the pump, they ensure quiet and durable operation with a long service life.
- Integral and compact design
- Connects directly to the power supply socket, easy maintenance
- Easy installation
- Can be installed on either side of the indoor unit of the A/C system
- Brushless motor, low noise & vibration
- Design focused on ensuring a high level of silence
- Sensor detection system
INSTRUCTIONS:

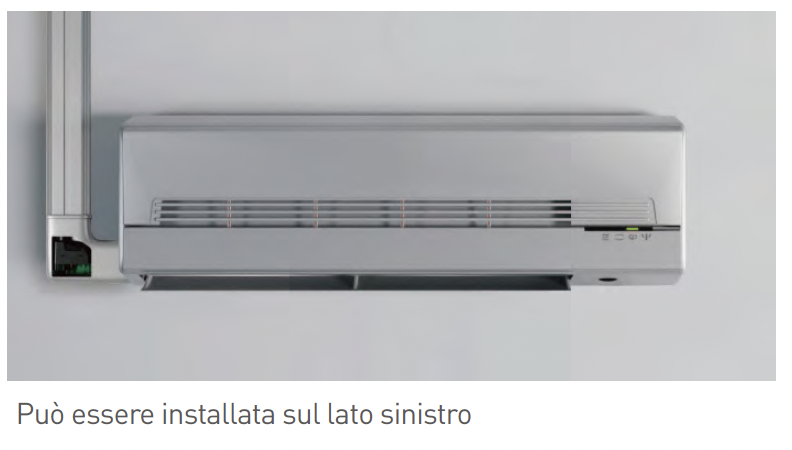

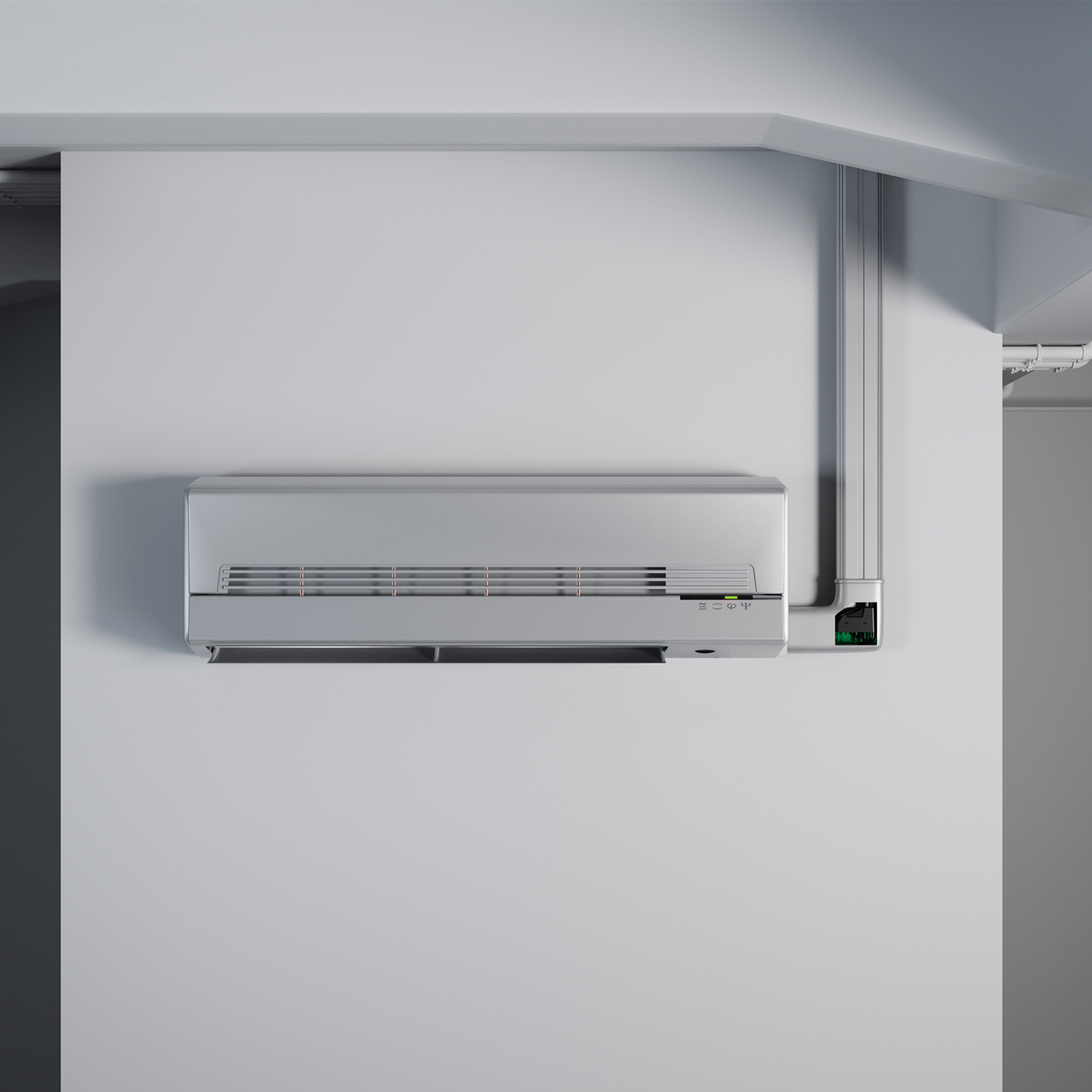

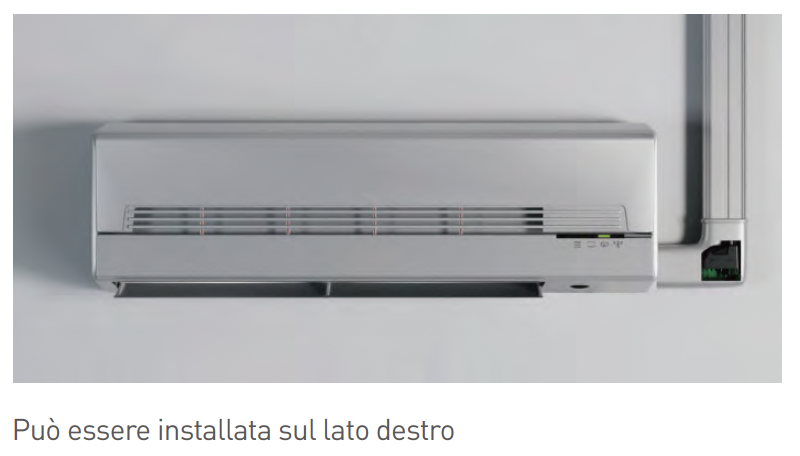

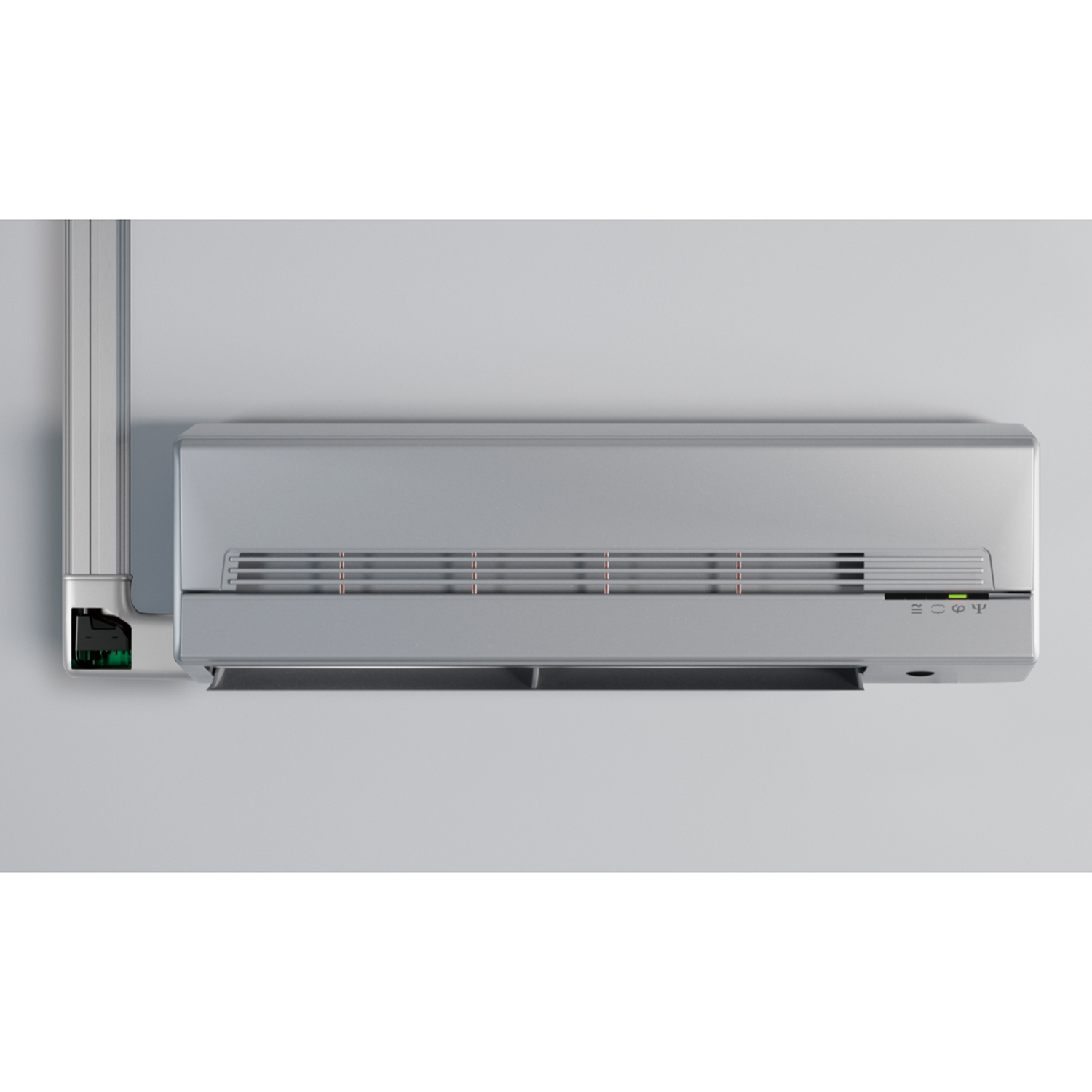

The pump can be easily installed on either side of the indoor A/C unit.
TECHNICAL CHARACTERISTICS:
- Power supply: 220 V 50 Hz

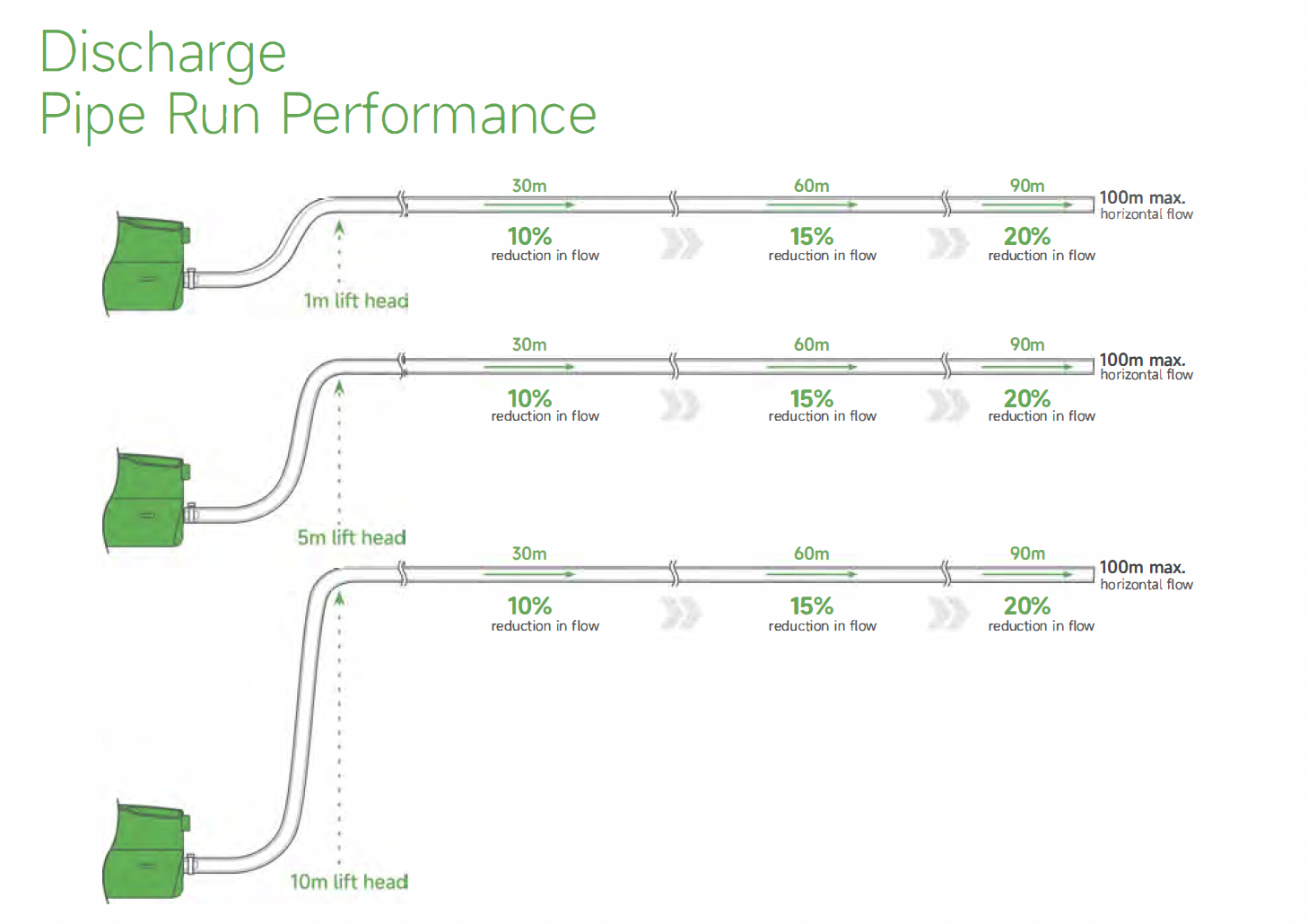

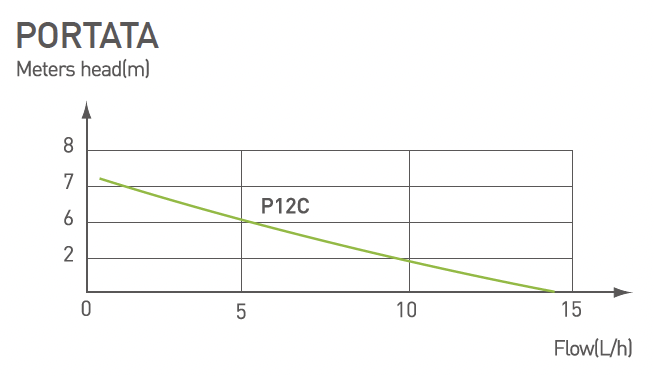

- Vertical discharge height/headroom (max): 7 metres
- Flow rate (max): 12 litres/hour
- Tank capacity: 45 ml
- Suitable for mini splits up to 30,000 BTU/hour (8.8 kW)
- Sound level at 1 metre: 19 db(A)
- Ambient temperature: 0-50 °C

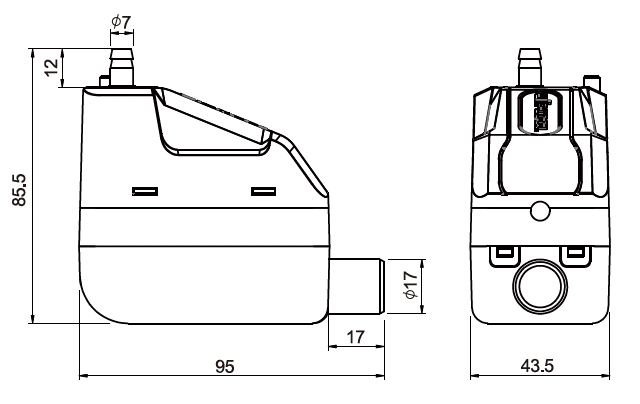

Dimensions: 95x43.5x(h) 85.5 mm.
