Mini Condensate Drain Pump P16 – Flow Rate 16 Liters/Hour, Suitable for Split Systems up to 30,000 BTU/hour (8.8 kW) – Compact, Multi-application, Quiet, and Robust
WIPCOOL offers the most comprehensive and high-performance range of mini pumps in the world.

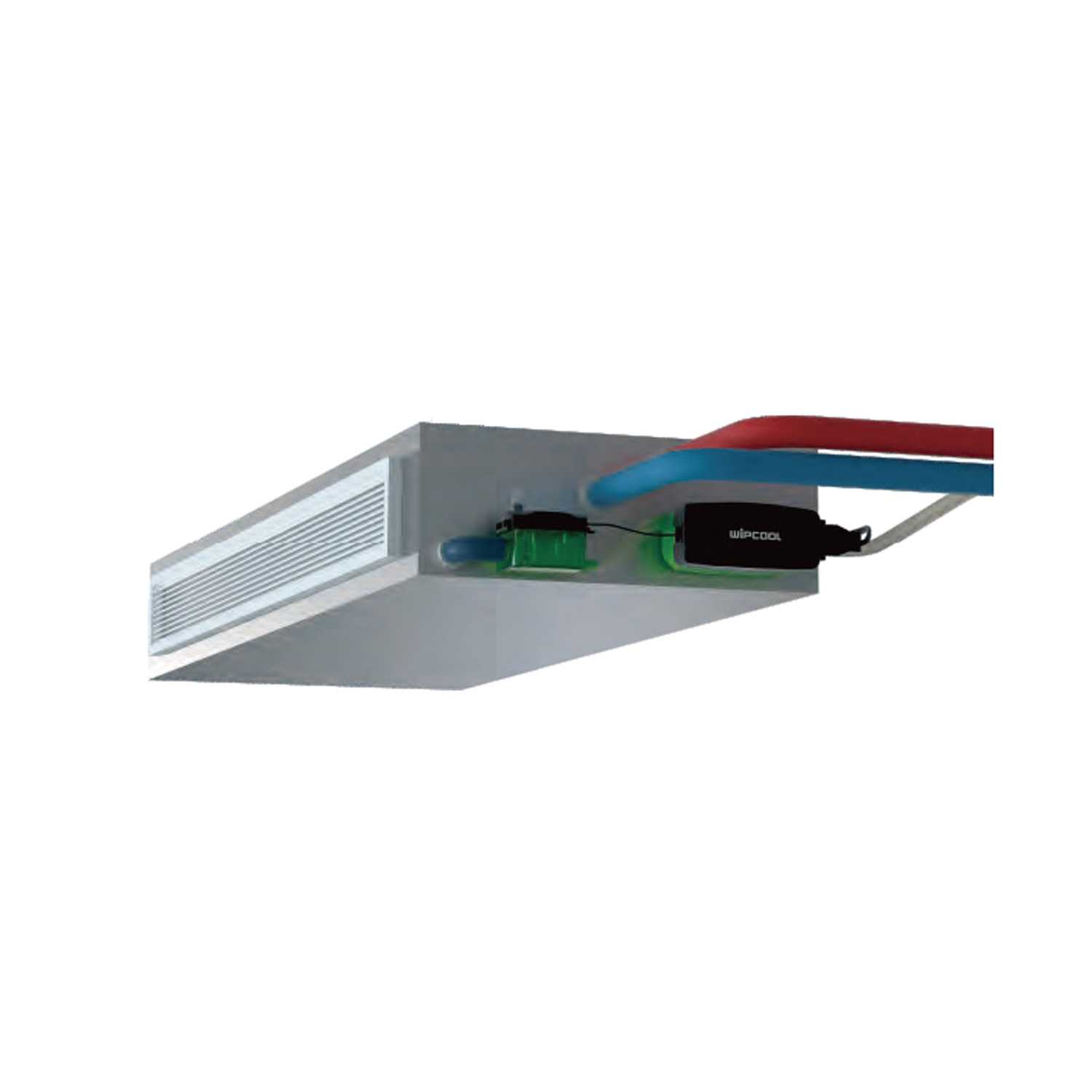

Widely used for split-type air conditioning units, ducted and cassette systems, as well as other appliances producing small amounts of condensate.
Equipped with a brushless motor, safety switch, and probe sensor to maintain high pump performance, ensuring quiet operation, durability, and long service life.
-

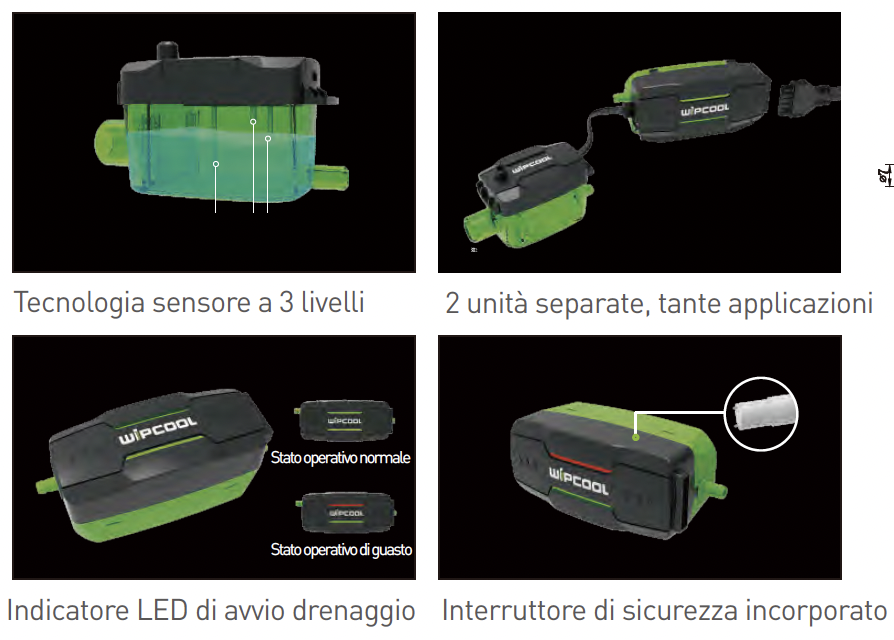

Dedicated design with ultra-low noise operation
-

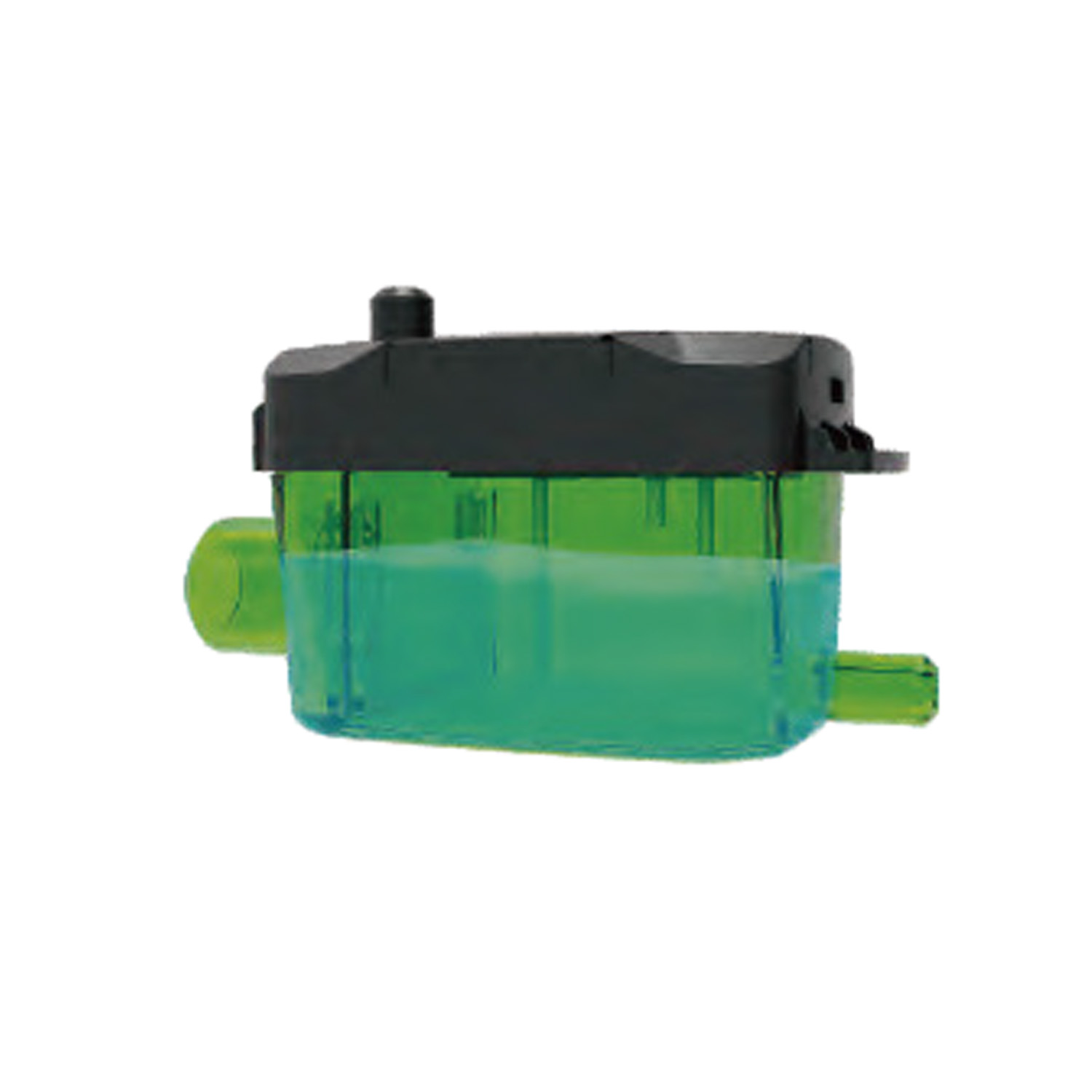

3-level fill sensor
-

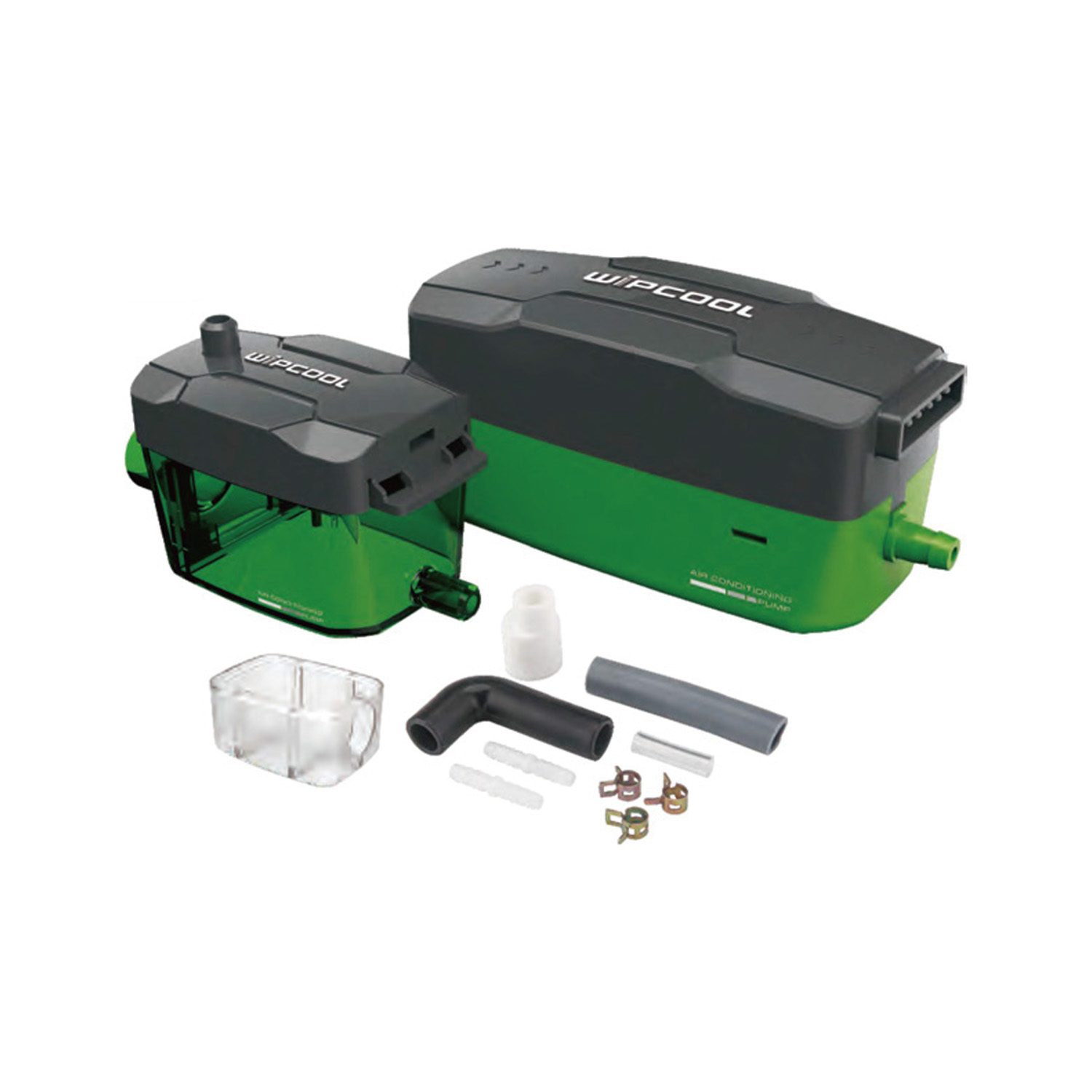

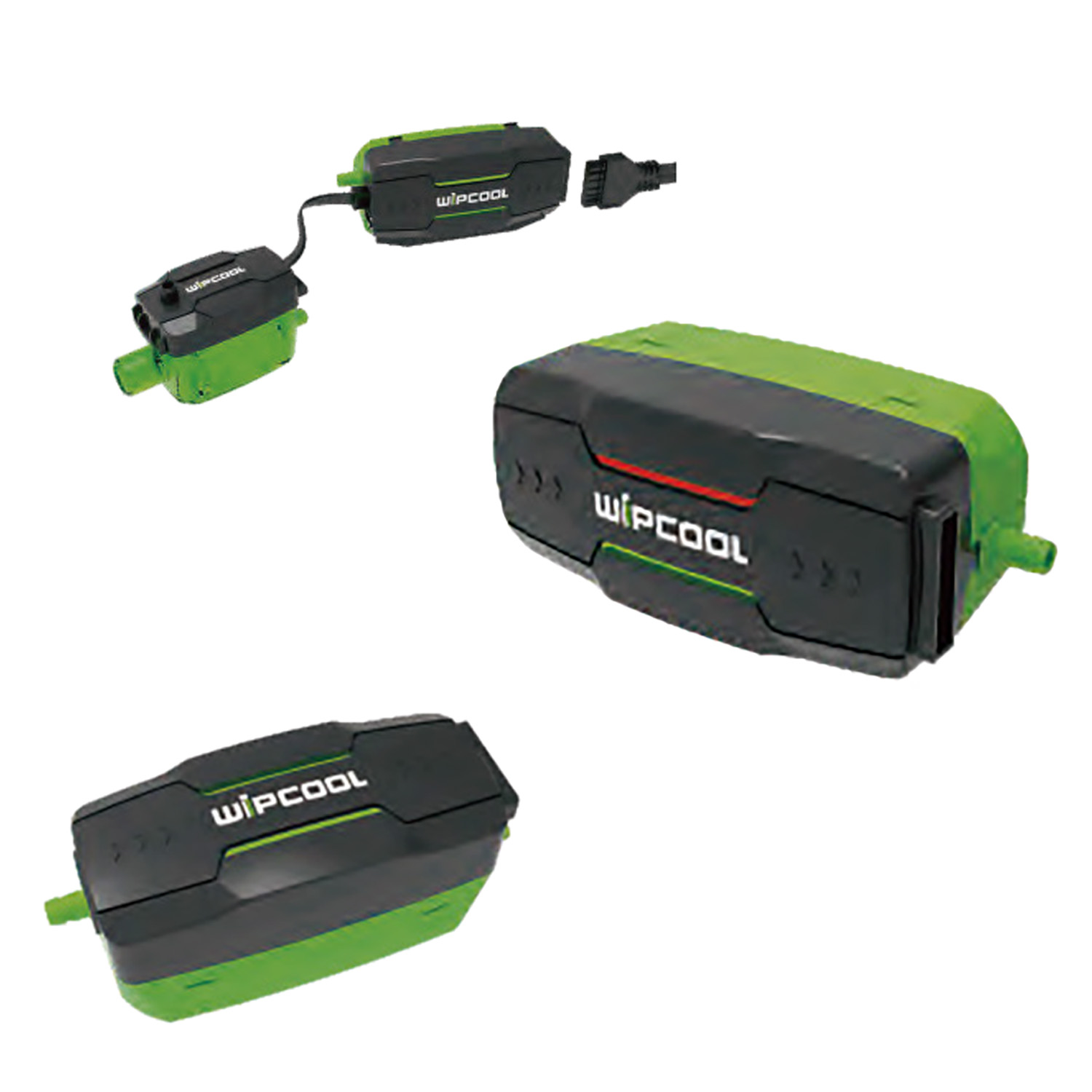

Two separate units, enabling infinite application possibilities
-
Built-in safety switch for complete reliability
-
Compact and attractive design, easy to place
-
LED indicator for drainage start
-
Brushless motor with low noise & vibration
IMPORTANT: The condensate drain pump includes a built-in relay that activates to shut off the air conditioning unit when the water level in the tank reaches the limit (due to total or partial blockage of the drain).
Power supply is automatically restored when the water level falls back below the maximum limit.
TECHNICAL SPECIFICATIONS:
-
Power supply: 220 V / 50 Hz
-

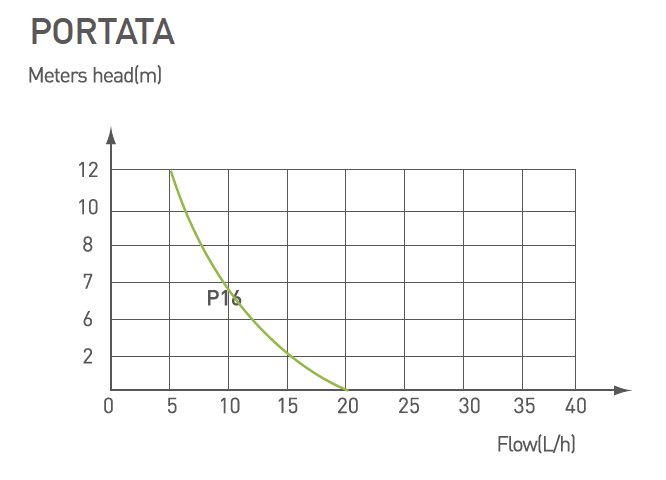

Maximum vertical lift (head): 10 meters
-
Maximum flow rate: 16 liters/hour
-
Tank capacity: 35 ml
-
Suitable for mini split systems up to 30,000 BTU/hour (8.8 kW)
-
Sound level at 1 meter: 19 dB(A)
-
Operating ambient temperature: 0–50 °C

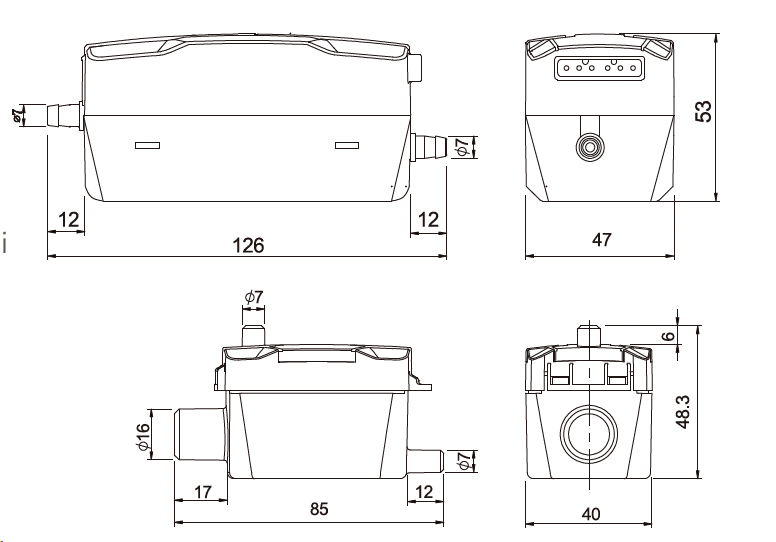

Dimensions:
-
Pump unit: 126 x 47 x (h) 53 mm
-
Tank unit: 85 x 40 x (h) 48.3 mm
