Value S-MINI Condensate Drain Pump – Ultra Compact and Silent – Flow Rate 18 L/h
Product shipped starting August 2025

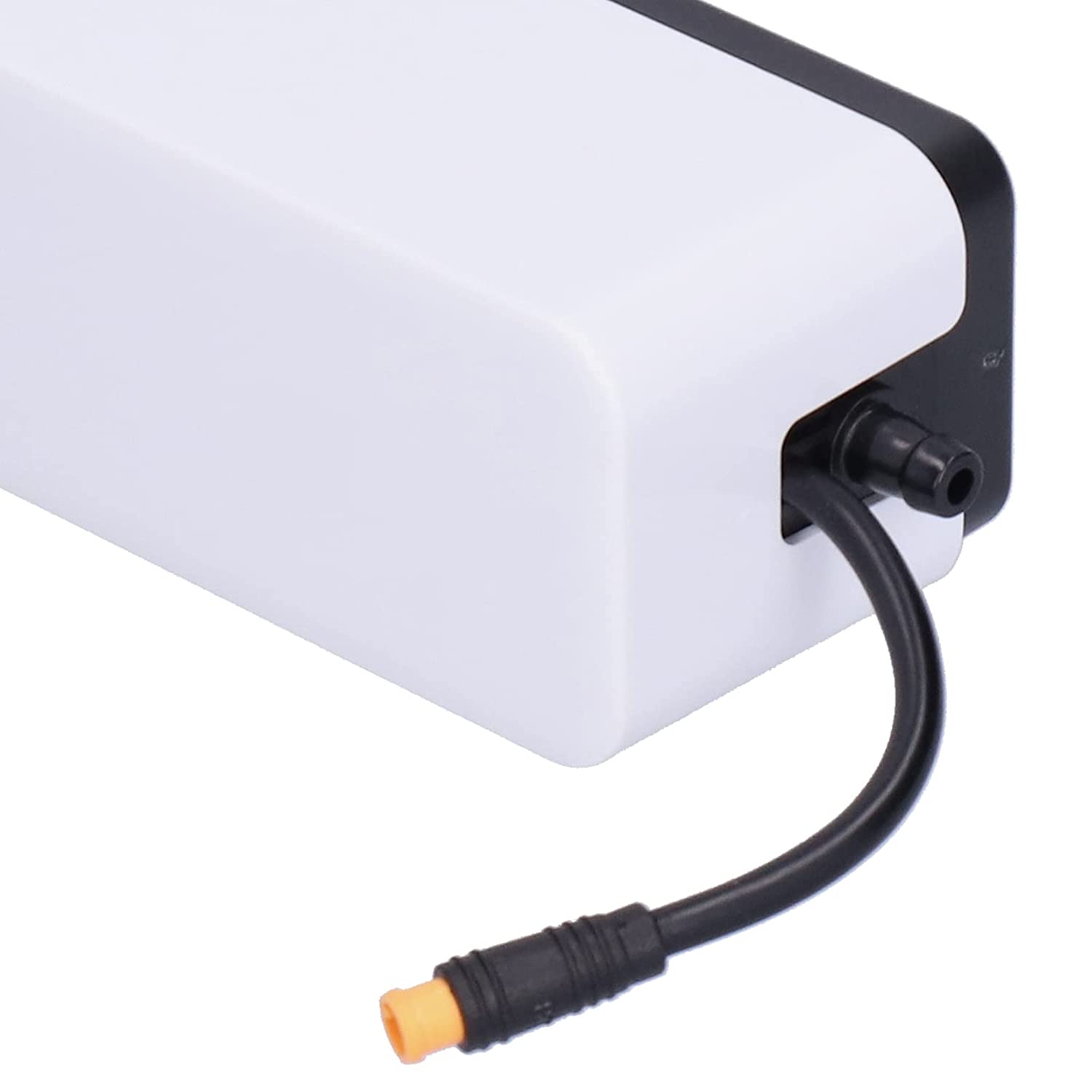

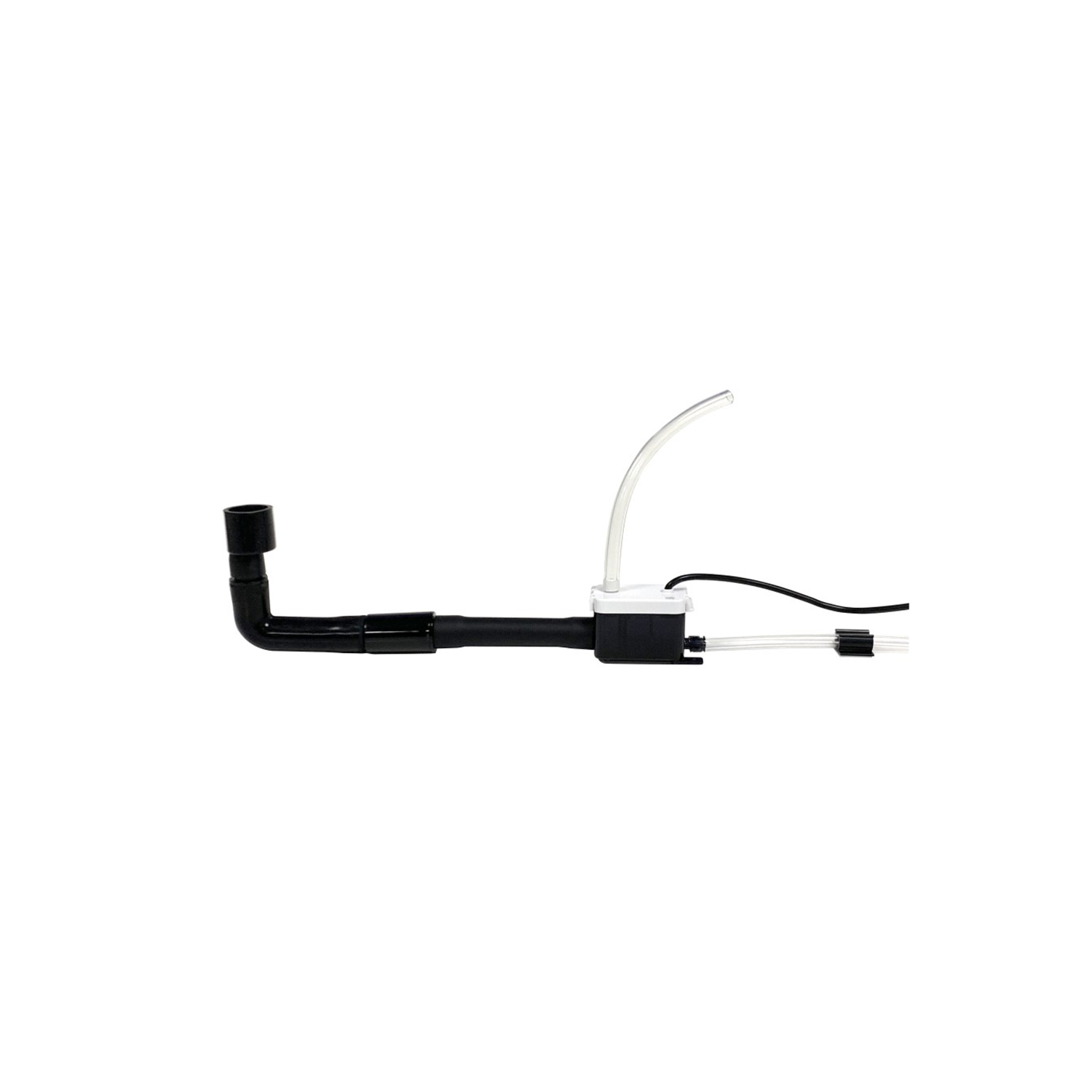

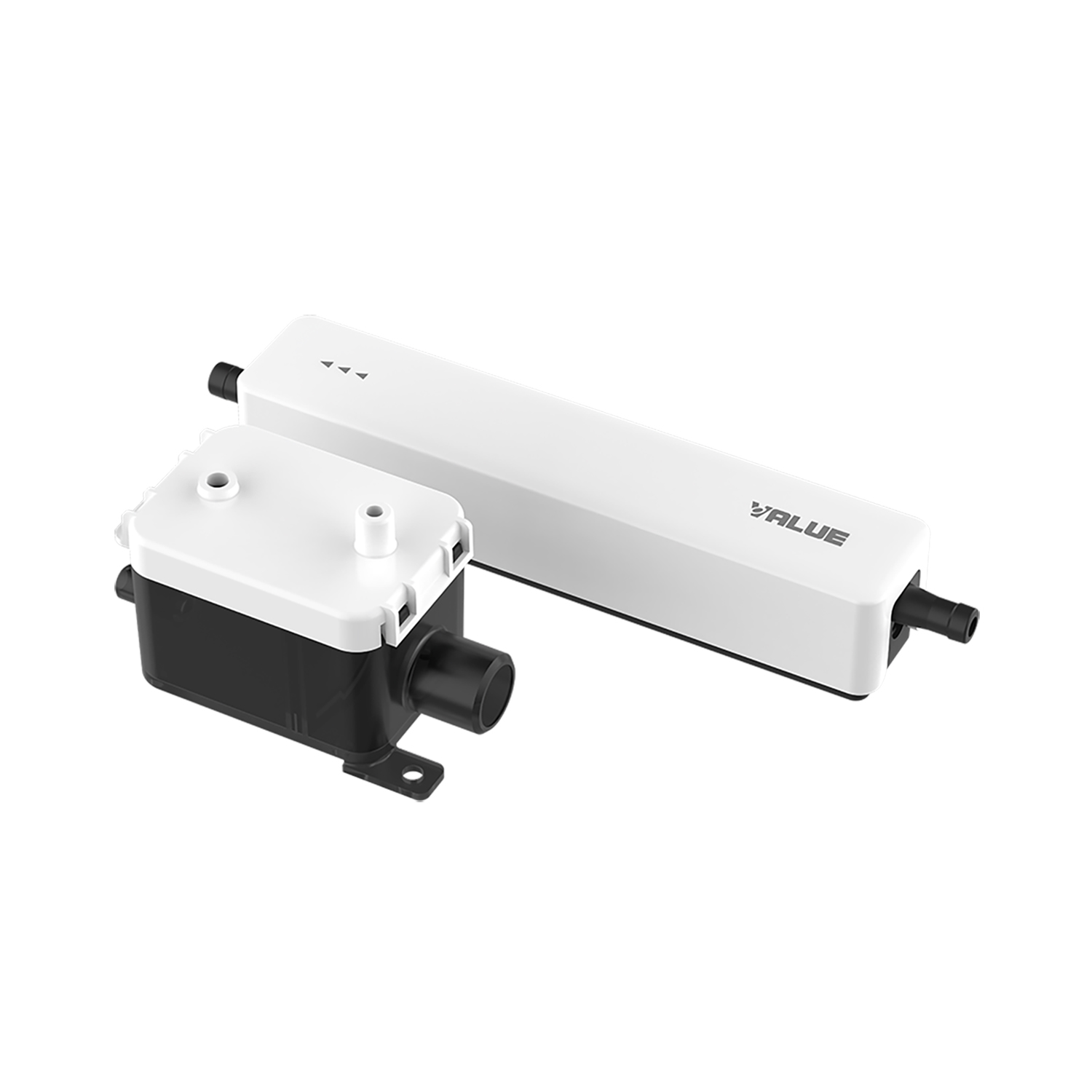

The VALUE-S-MINI condensate drain pump is designed to offer maximum installation flexibility: it can be integrated directly into the air conditioning unit or mounted externally in a nearby duct.
Thanks to its DC motor technology and innovative vibration dampers, the VALUE-S-MINI ensures ultra-quiet operation, making it ideal for noise-sensitive environments.
Reliable, compact, and easy to install and maintain, it is the perfect choice for HVAC professionals seeking efficiency and discretion in one solution.
Professional, Compact, and Durable Design
The VALUE-S-MINI is an automatic condensate removal pump designed to deliver reliability, efficiency, and silent performance. With a power consumption of just 3 Watts, it offers an energy-efficient solution while maintaining a noise level below 19 dB—ideal for spaces where acoustic comfort is a priority.
Its new water level detection system using electrodes replaces traditional float switches, effectively preventing blockages and faults caused by scale or debris.
Versatile Applications
Thanks to its compact design and high performance, the VALUE-S-MINI is suitable for a wide range of applications: air conditioning systems, dehumidifiers, refrigerated display cabinets, ice makers, and any other equipment requiring an automatic condensate lift pump.
Easy Maintenance
Designed for clean, frost-free indoor environments, the pump requires minimal upkeep. An annual inspection and cleaning are recommended to ensure optimal performance.
Integrated Safety System
Equipped with a built-in alarm relay, the pump automatically shuts off the air conditioning unit's power supply if the water level exceeds the maximum limit, helping to protect the system from potential damage.
Technical Specifications
-
Motor: DC (ultra-silent)
-
Power Supply: 110–240 V AC / 50–60 Hz
-
Tank Capacity: 50 ml
-

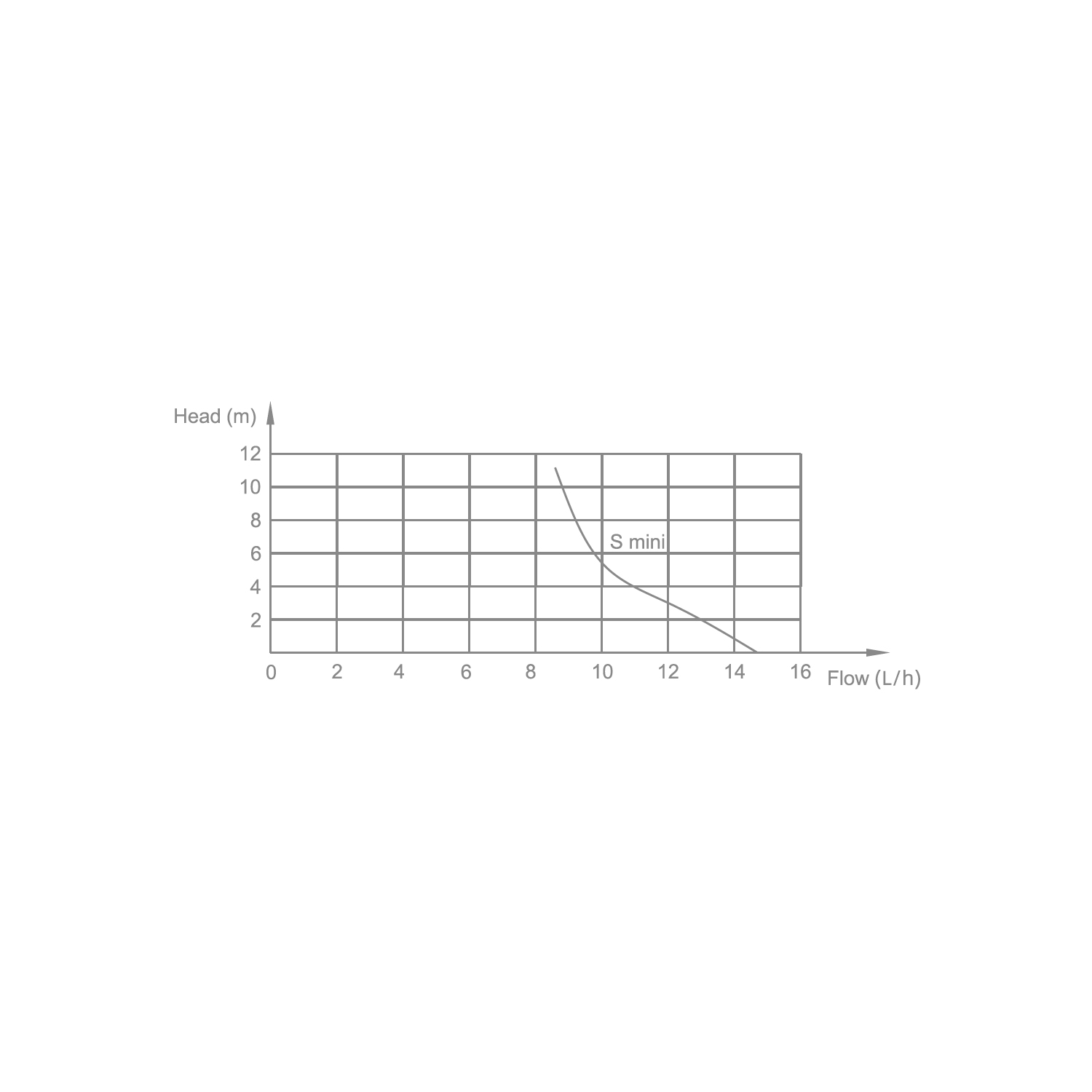

Maximum Flow Rate: 18 L/h
-
Maximum Discharge Head: 10 m / 32 ft
-
Sound Level at 1 m: 19 dB
-
Operating Ambient Temperature: 0 to 50 °C
-
Pump Dimensions: 167 x 28 x 28 mm
-
Tank Dimensions: 83 x 47 x 40 mm

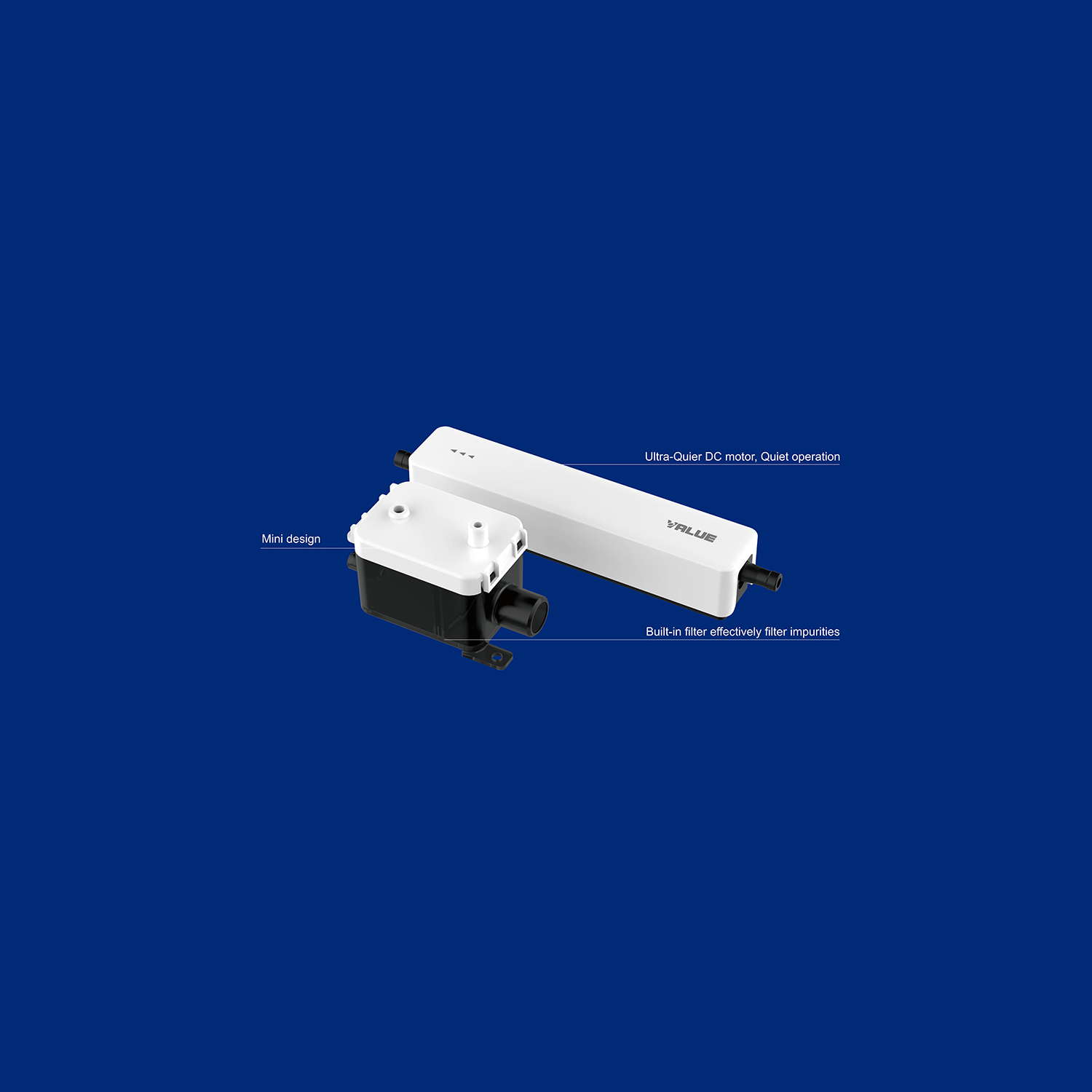

Technical Advantages
• DC motor for quiet operation
• High-reliability electrode level sensor
• 24/7 automatic operation
• Integrated water filter for enhanced protection and durability
