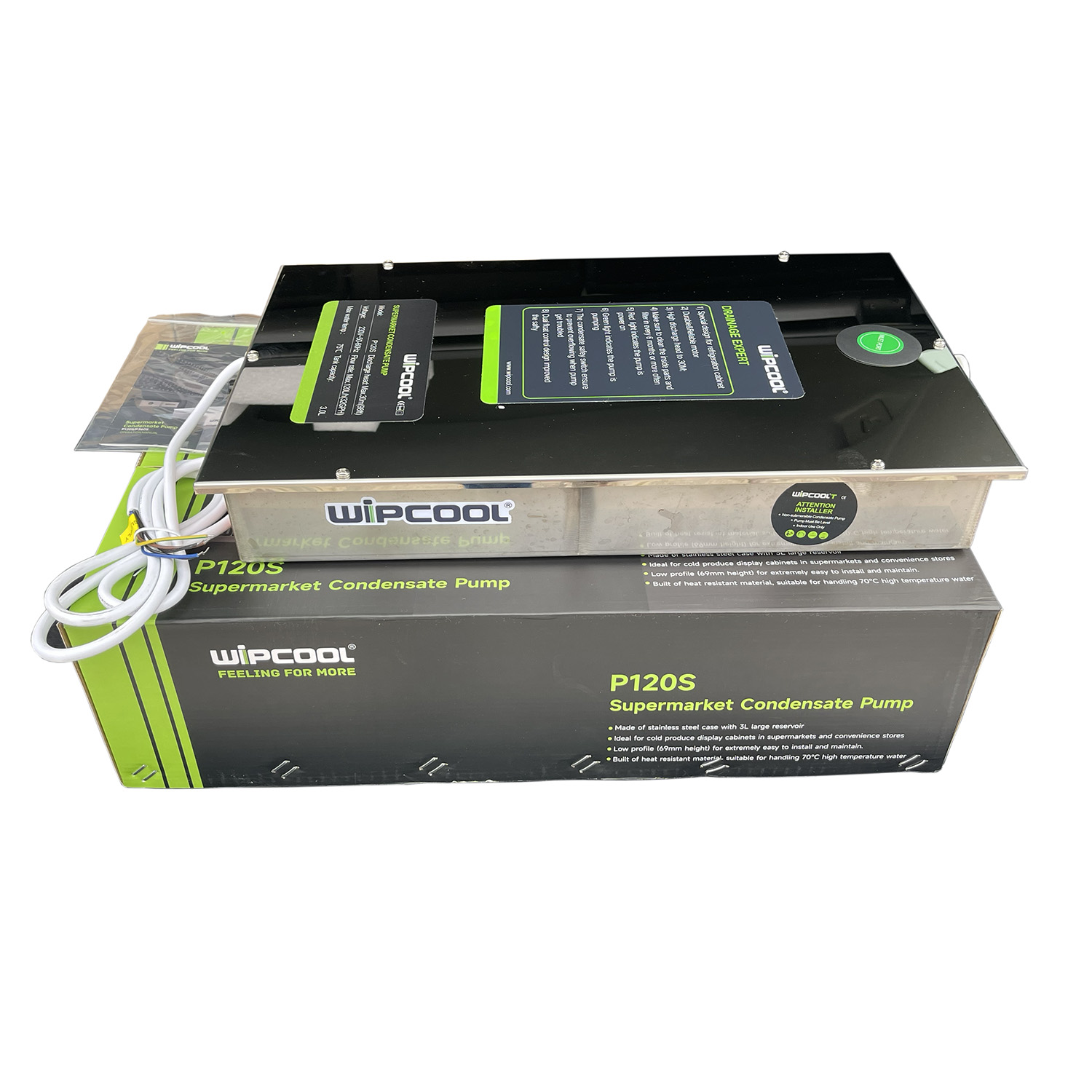

WIPCOOL Condensate Drain Pump for Supermarkets (Commercial Refrigeration)
The WIPCOOL condensate pump for supermarkets has been specifically designed with a compact form factor, making it ideal for refrigerated display cases in supermarkets and convenience stores.
It is particularly suitable for handling condensate from supermarket refrigeration units. The pump is extremely easy to install and maintain.

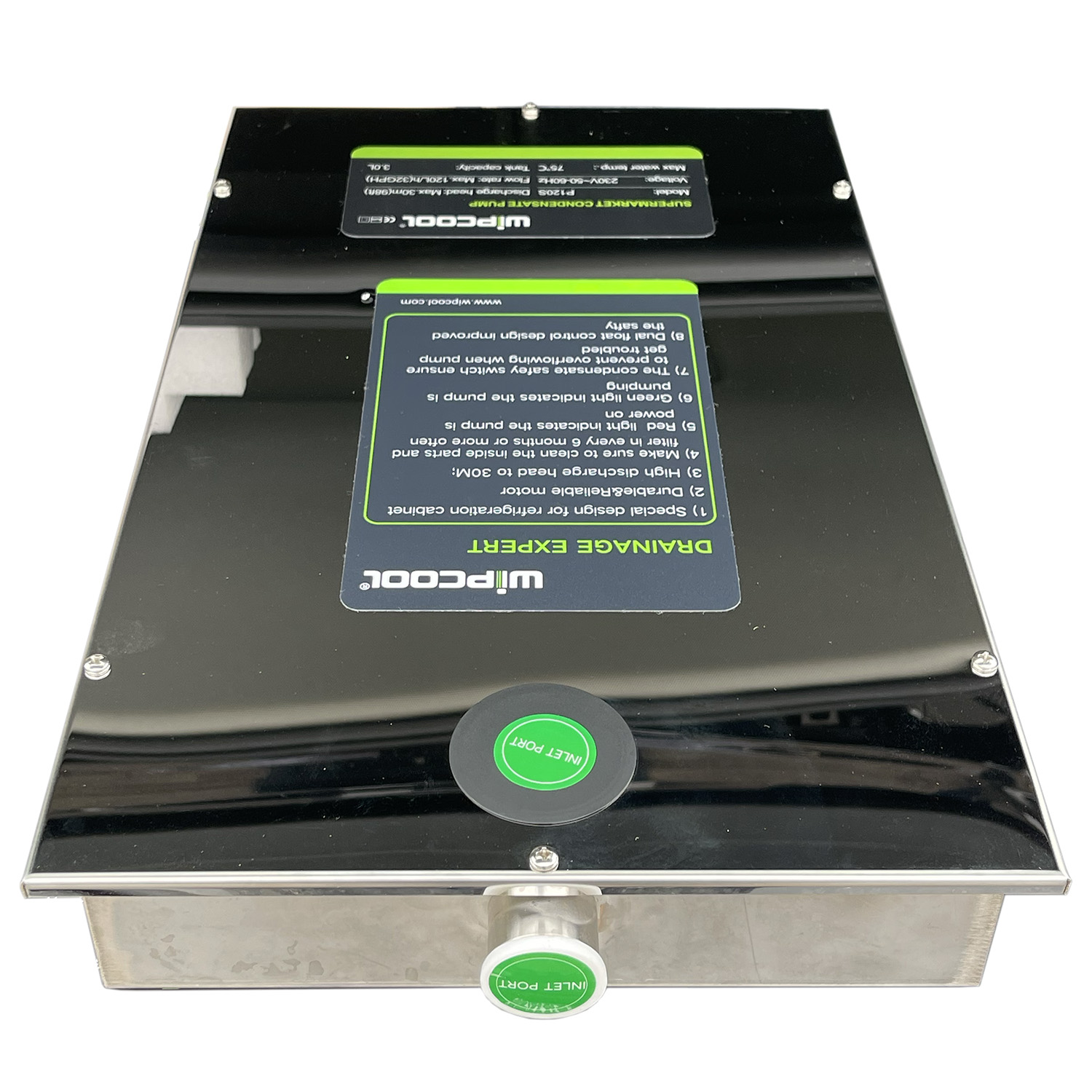

The compact design allows for installation beneath low-height refrigerated counters and efficiently removes water during defrost cycles. It features an easy-to-clean stainless steel tank capable of handling hot water up to 70°C, a non-return valve, and dual inlets (top and side). The pump effectively drains defrost water and filters debris.
-
Constructed in stainless steel with a 3-liter tank capacity
-

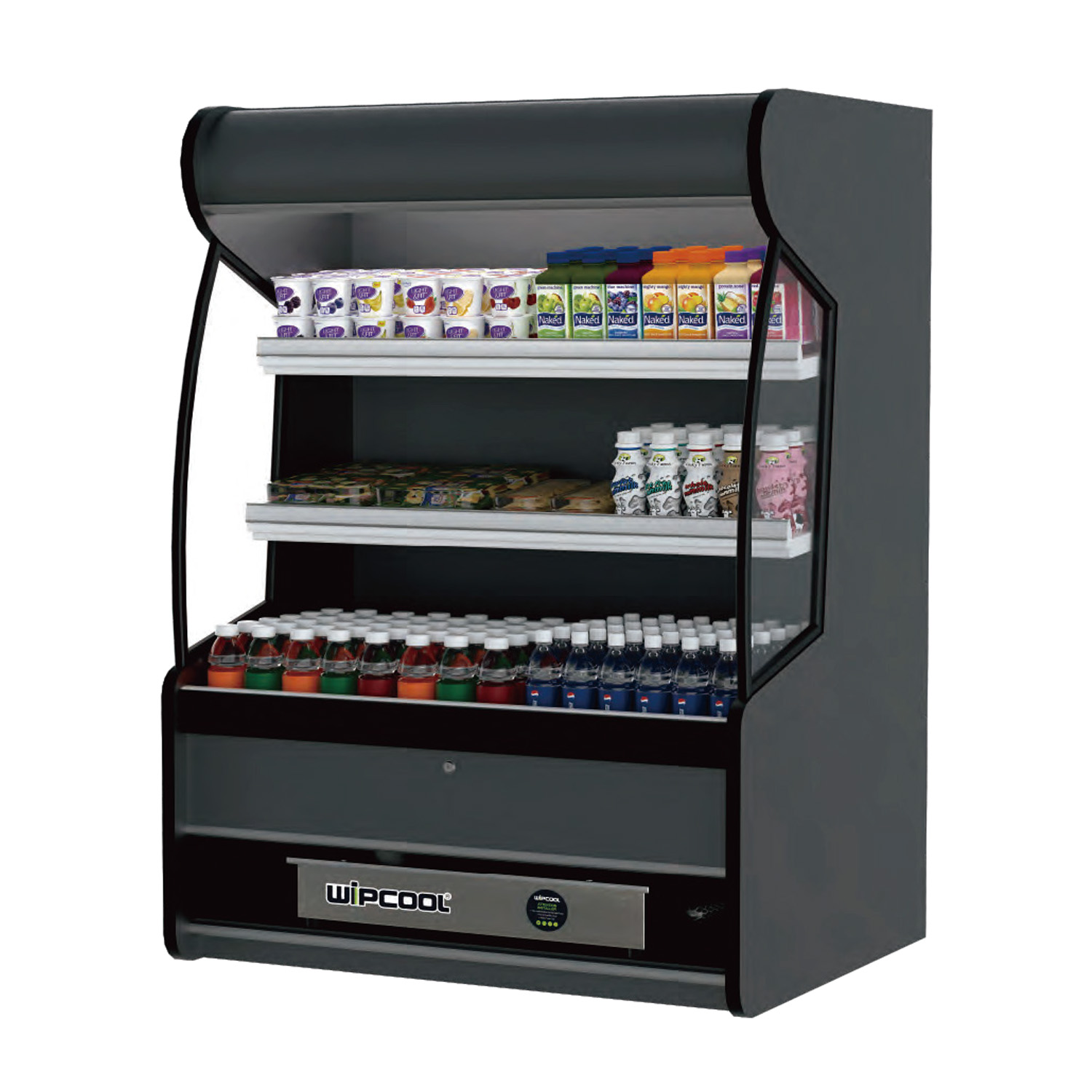

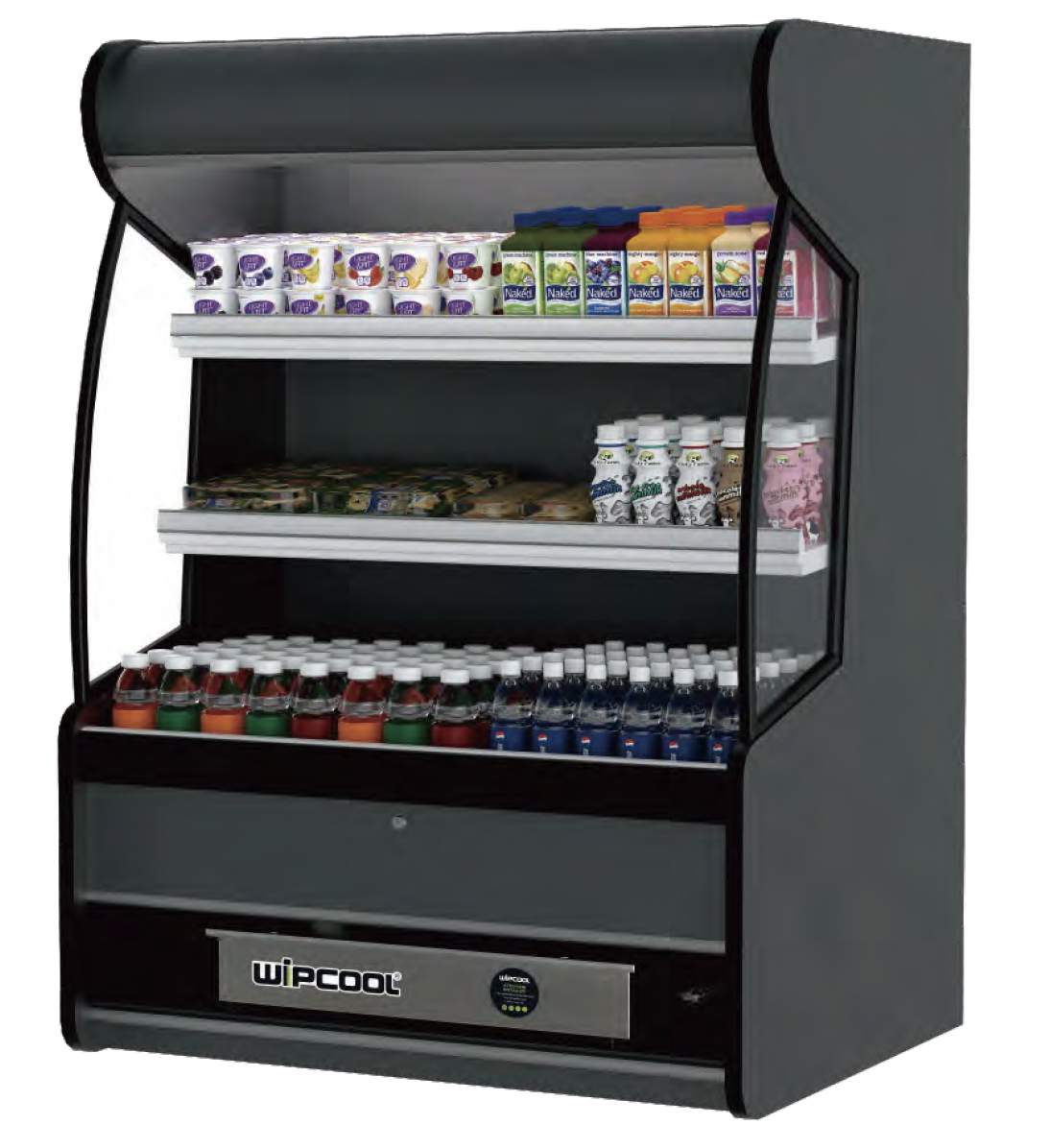

Recommended for supermarket and convenience store refrigerated display cases
-

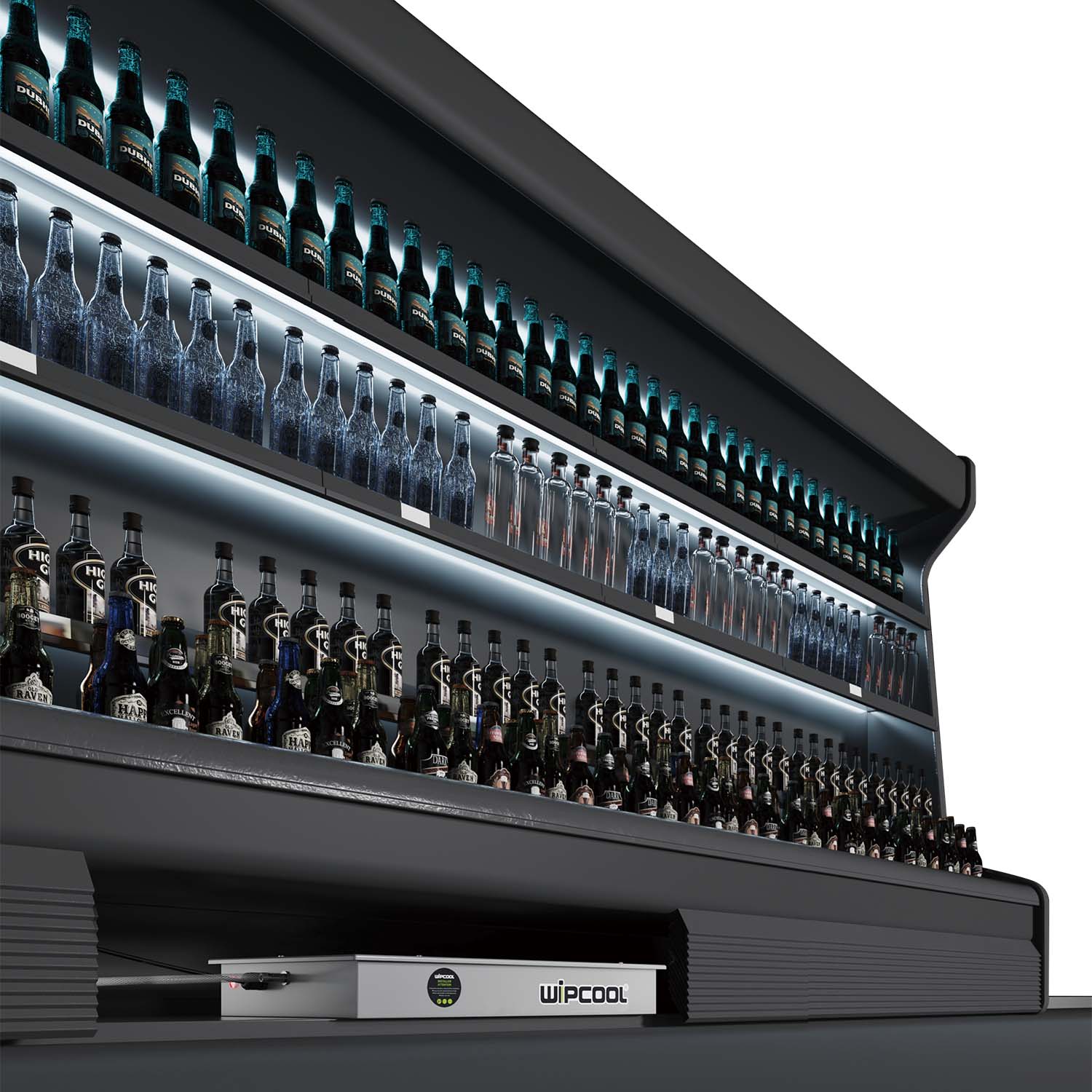

Low profile design (height: 69 mm) for easy installation and maintenance
-
Made of heat-resistant material, operating temperature up to +70°C
-
Sensor-based detection system
IMPORTANT: The condensate drain pump is equipped with a built-in relay that activates to shut off the refrigeration unit when the water level in the tank reaches the maximum limit (due to a full or partially blocked drain).
The power supply is automatically restored once the water level in the tank drops below the maximum limit.
INSTALLATION:
TECHNICAL SPECIFICATIONS:
-
Power supply: 220 V / 50 Hz
-
Maximum vertical lift (head): 30 meters
-
Maximum flow rate: 120 liters/hour
-
Tank capacity: 3 liters
-
Suitable for systems up to: 300,000 BTU/hour (88 kW)
-
Sound level at 1 meter: 40–62 dB(A)
-
Maximum ambient temperature: 75 °C
-
Power consumption: 30 W
