The refrigeration and air conditioning sector is undergoing a profound transformation. The progressive phase-out of high-GWP refrigerants imposed by European F-Gas Regulation (EU) No. 517/2014, and ongoing regulatory revisions, is pushing the entire industry towards a new generation of low environmental impact refrigerants: A2L class gases such as R32, R454B and R452B, and A3 class gases such as propane R290 and isobutane R600a.
These refrigerants are more eco-friendly, but they introduce a risk that technicians cannot ignore: they are flammable. Working with A2L and A3 class substances requires specific skills, devices certified for use in potentially explosive atmospheres and full compliance with ATEX Directive 2014/34/EU, transposed in Italy by Legislative Decree 85/2016. This is not a choice or an optional precaution: it is a legal obligation, with direct implications for the safety of operators, facilities and end customers.
The Kit ATEX Advanced by GeneralGas is the answer for those who want to take their work to a higher level. In addition to including all the ATEX-certified instruments essential for working safely with A2L and A3 refrigerants, this configuration introduces an element that radically changes the way of working: wireless connectivity. Thanks to the VALUE smart ecosystem and the Hi-Value app, the scale, manifold gauge, vacuum gauge and shut-off valve communicate in real time with each other and with the technician's smartphone, allowing monitoring and control of every system parameter remotely, with precision and flexibility.
It is the ideal equipment for professionals and companies who do not merely comply with regulations, but choose to innovate their way of working: fewer cables, more control, faster and better documented interventions. Every component has been selected from the best brands in the industry — VALUE, Fieldpiece, GK-Tools — to guarantee high-level performance, full ATEX compliance and a cutting-edge user experience.
What is included in the kit

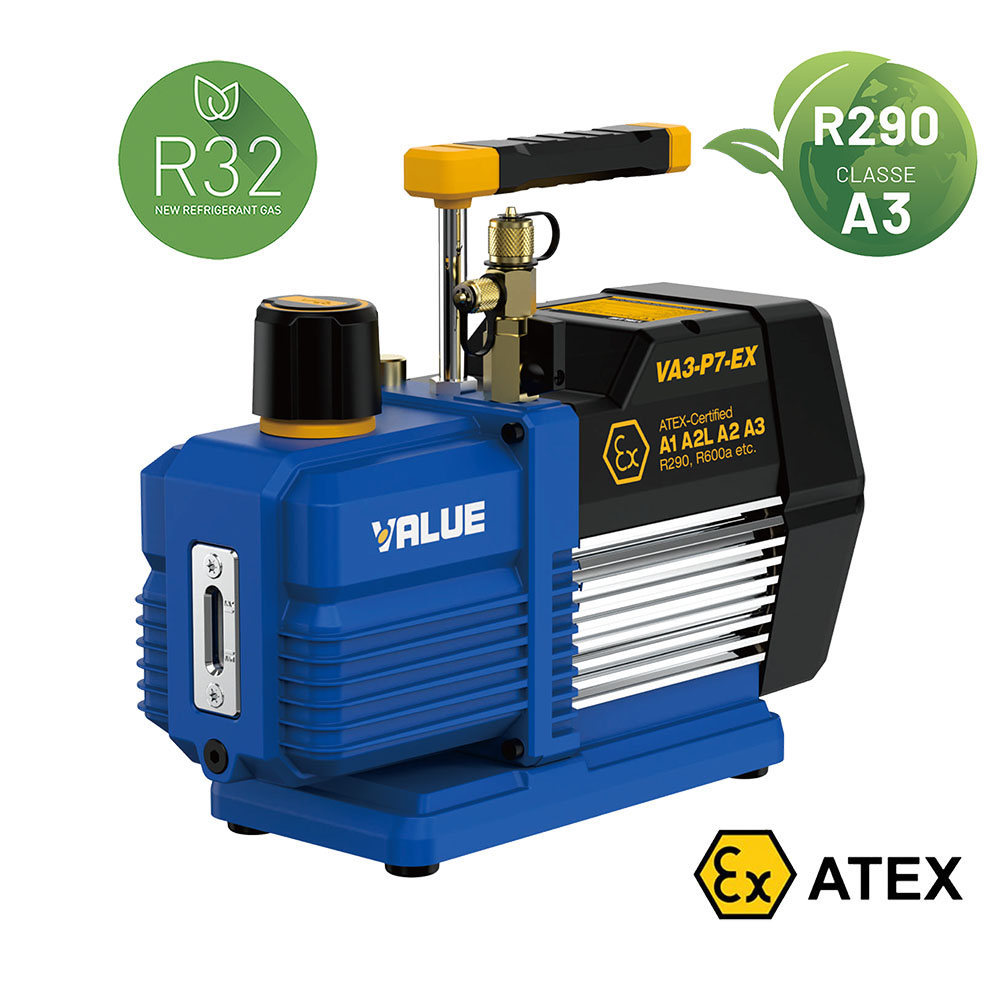

VALUE VA3-P7-EX - ATEX Vacuum Pump Flow rate 198 litres/minute, vacuum 15 micron. ATEX certified, compatible with A1, A2, A2L and A3 refrigerants (R290, R600a).

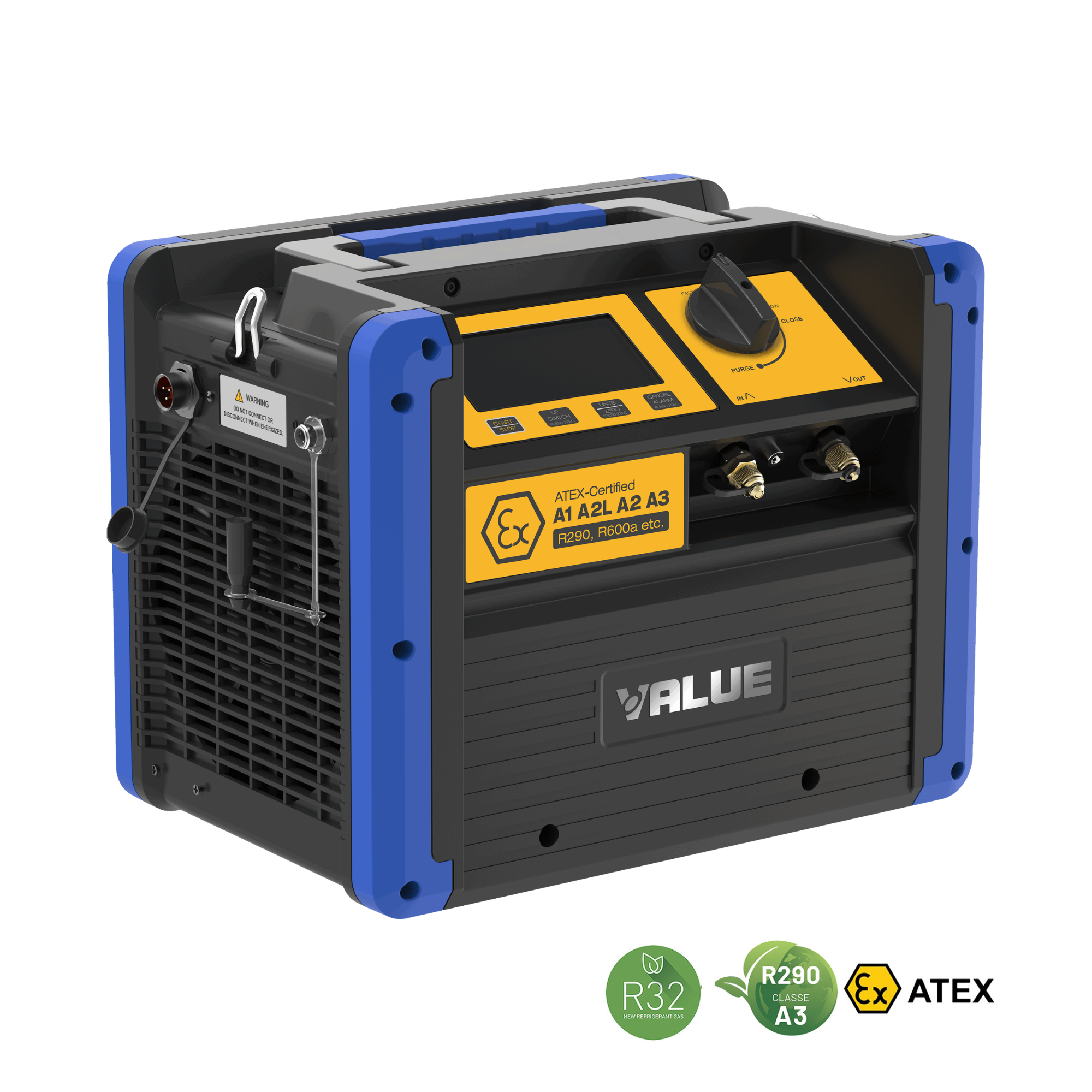

VALUE VRDDF - ATEX Certified Refrigerant Recovery Machine 1 HP / 0.75 KW, 510 kg/hour in push/pull mode. Ideal for flammable A2L and A3 gases (propane R290).

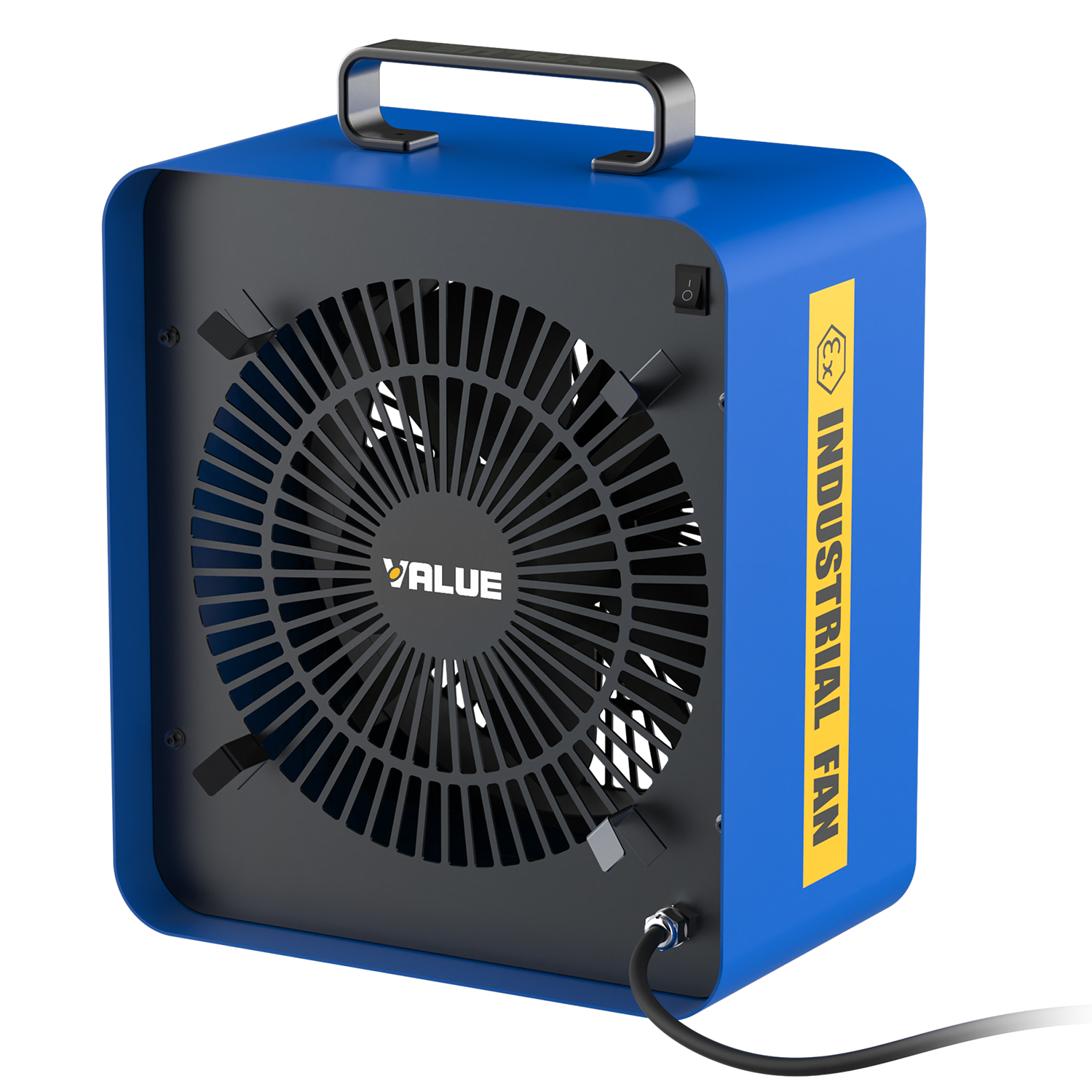

VALUE VA3-F-EX - ATEX Fan For ventilation of the work area during recovery of flammable refrigerants R290 and R600a.

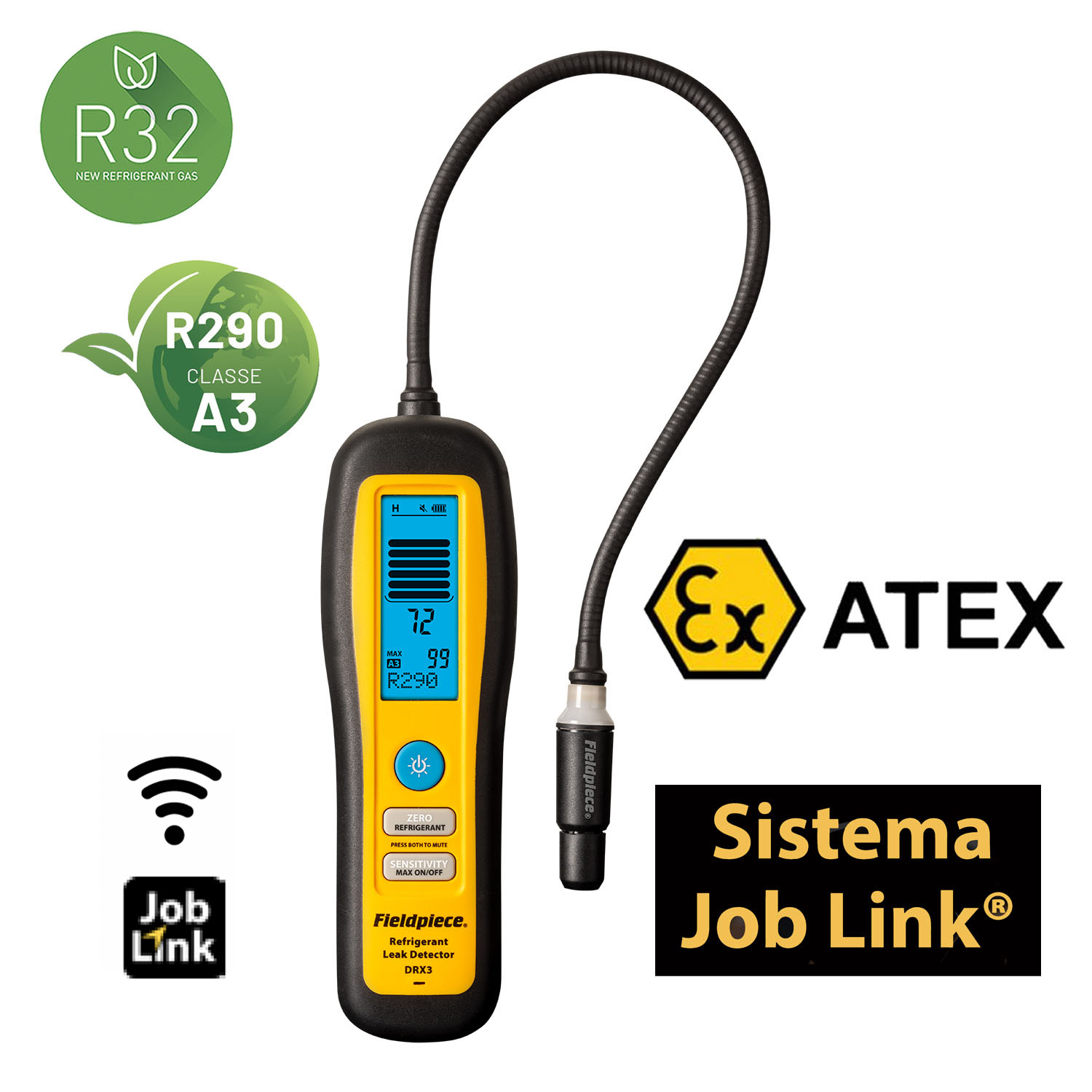

Fieldpiece DRX3 - ATEX Portable Refrigerant Leak Detector Heated diode technology with LCD monitor. For fast and reliable detection of refrigerant leaks.
F-Gas Calibration Report Included
VALUE VRM-2SX - Wireless Touchscreen Digital Manifold Gauge Supplied with two Bluetooth temperature probes and carrying case. Compatible with A2L refrigerants. 5.5-inch HD Touchscreen Display - Smart functions with Hi Value App.
F-Gas Calibration Report Included
VALUE VRS2A - Smart Electronic Scale Capacity 100 kg, resolution 5 grams. Wireless remote control and display, compatible with the Hi-Value app.
F-Gas Calibration Report Included
VALUE VSV1 - Smart Electronic Shut-off Valve Maximum working pressure 38 bar. Wireless operation in combination with the VRS2A scale and the Hi-Value app.
VALUE VMV1S - Smart Digital Vacuum Gauge Wireless connection via Hi-Value app, Pirani vacuum sensor. Large backlit display with high-pressure protection.
F-Gas Calibration Report Included
Value VCR1 - Schrader Valve Core Remover Suitable for R410A, R32 systems, 5/16 and ¼ SAE fittings. Tested for vacuum tightness up to 20 micron.
Empty Refillable T-PED Cylinder 12.5 lt - 48 bar For flammable gases, complete with dual-phase Y-valve double outlet 1/2"-16 ACME LH. Also suitable for refrigerant gas recovery.
GK-Tools PRO Set of 3 Charging Hoses ¼ SAE With 45° valve — 150 cm, original Continental hose. Ball valve and depressor Made in Italy. Blue/red/yellow colours.
VALUE Specific Hose for Vacuum Pumps Black colour, SAE J2196 / EN 1736, length 150 cm, 3/8 SAE female fittings.

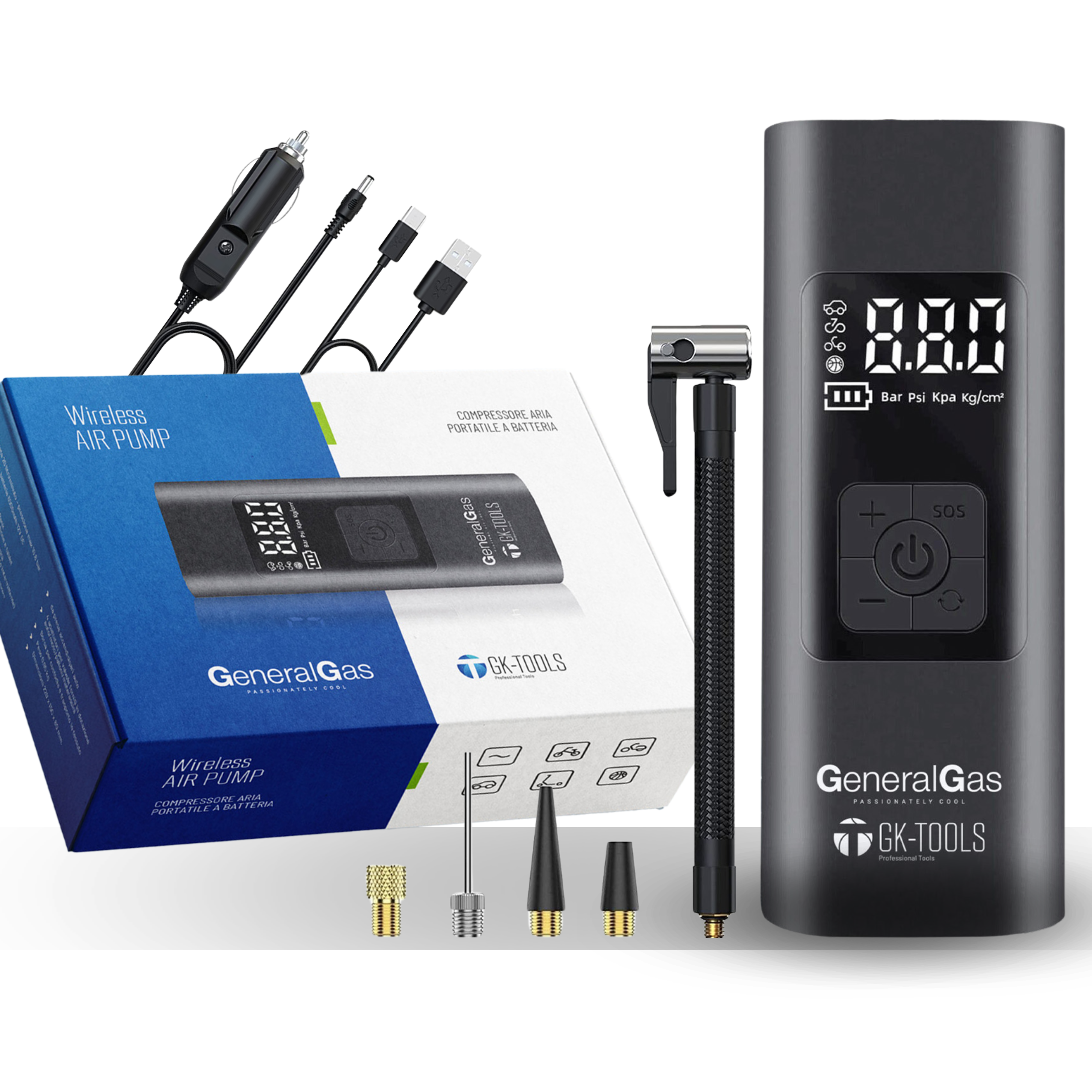

And additionally, while stocks last, free of charge* with the kit: Portable Rechargeable Battery Compressor — flow rate 20 l/min, max pressure 10.8 bar, 6,000 mAh 12V DC battery. With LED torch, power bank function and 4 included adapters (car, motorcycle, balls, inflatables). Rechargeable via USB and car cigarette lighter socket.
*Subject to availability
