"ADVANCED" Complete Professional Kit (ref. Accredia Circular DC no. 12/2020 – EU Regulation 2015/2067 for companies operating in air conditioning and refrigeration)
The Accredia Circular has officially defined which tools/equipment are mandatory for F-GAS certification. The tools required under DPR146 for company certification for installation and maintenance are:
- manifold gauge set
- scale
- thermometer
- clamp meter
- electronic leak detector with sensitivity of at least 5 grams per year
- spray/foam leak detector
- recovery cylinder
- nitrogen kit for pressure testing, complete with cylinders, regulators and gauges
- vacuum pump for evacuation and refrigerant charging
- vacuum gauge
- refrigerant recovery unit
- brazing station
The GeneralGas F-GAS "ADVANCED" kit includes:
- KryonBubbles – Professional non-flammable foam leak detector for refrigerant gases, in spray can with Accusol dispenser – 400 ml aluminium can – net content excluding propellant 300 ml
- K-Leak Tester nitrogen kit, consisting of: plastic carry case – yellow flexible hose with ball valve and pressure gauge (with colour-coded sectors according to gas type) – yellow flexible hose length 1,000 mm, 4,000 psi – ¼" SAE female to 5/16" SAE male adapter – ¼" SAE male to 5/16" female adapter – nitrogen pressure regulator (max. outlet pressure 50 bar) – G-TEC nitrogen/5% hydrogen cylinder (N2-H2), capacity 0.95 litres, N2/H2 mixture content 105 Nl/114 g – plastic support base for 0.95 L nitrogen cylinder – cardboard box – kit instructions
- Pack of 6 G-NITROGEN nitrogen cylinders – Capacity 0.95 L – Gas content per cylinder 105 Nl/121 g

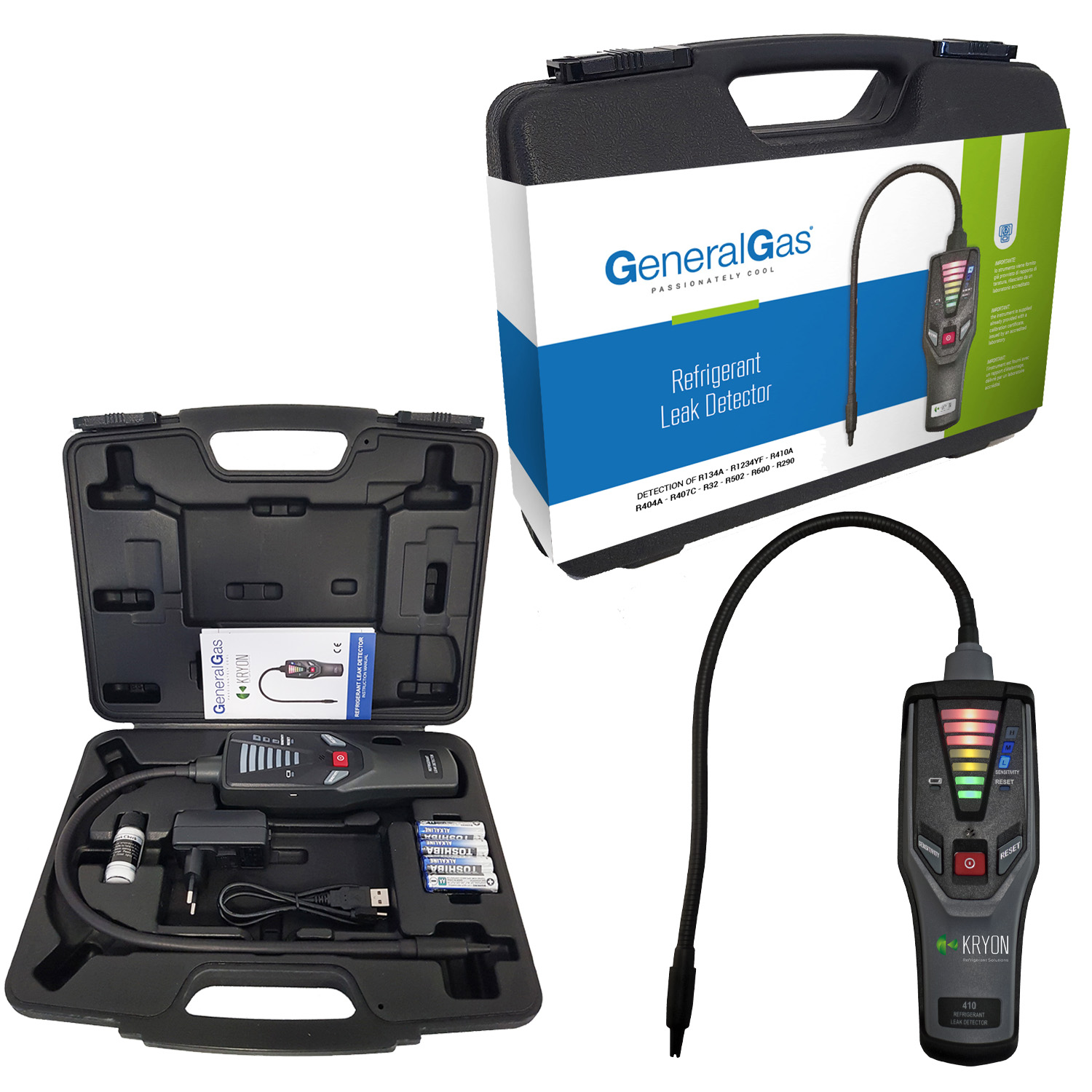

- Kryon® universal electronic leak detector for Refrigerant Gases and Nitrogen-Hydrogen Mixtures (designed to detect a gas mixture of 5% Hydrogen (H2) + 95% Nitrogen (N2)). It is also capable of detecting Refrigerant Gases R134a, R410A, R407C, R1234yf, R32, R404A – R502, and hydrocarbons R600 and R290. The leak detector features a heated sensor and microprocessor, ensuring a realistic and highly accurate signal. Thanks to adjustable sensitivity and 7 LEDs with a visual colour-scale function, it guarantees detection of leaks below 5 ppm (2 g/year).
- VES-50A – Electronic scale, capacity 50 kg, resolution 2 grams, with remote control and display

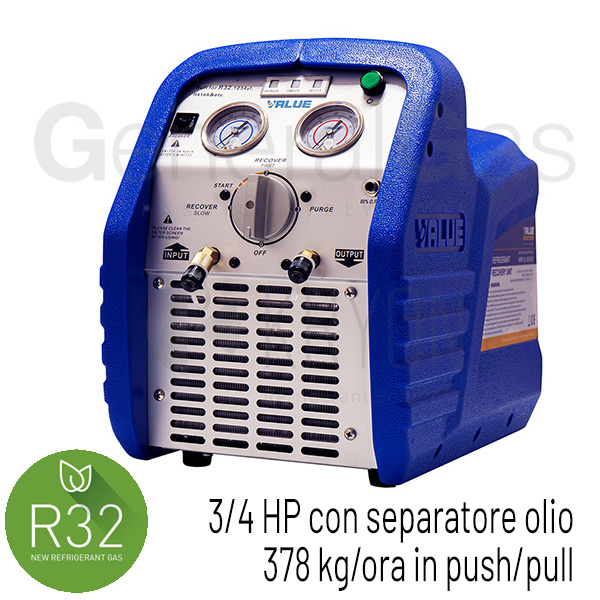

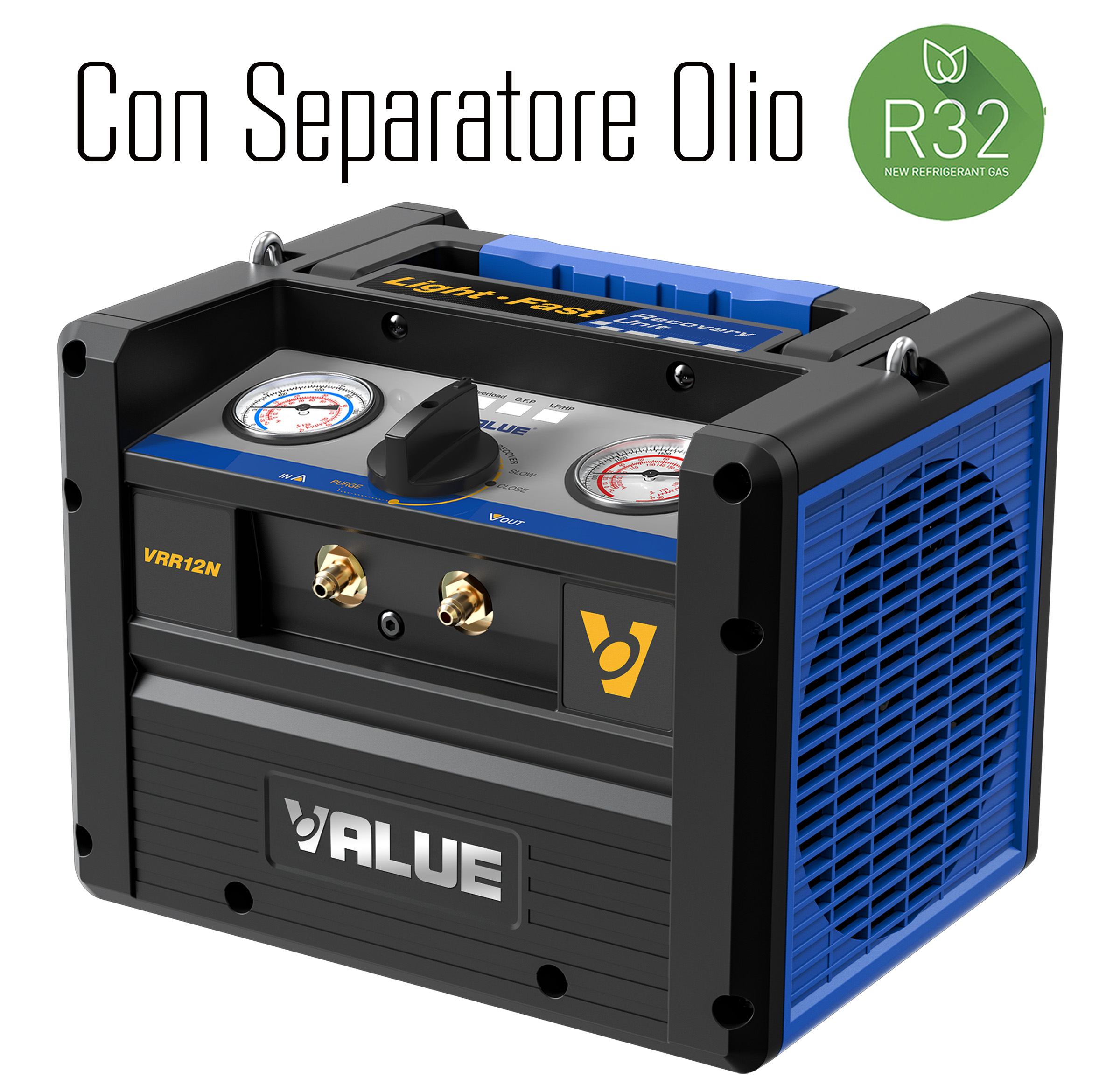

- VRR12N-OS – Digital recovery unit with oil separator, 6.93 kg/min – 416 kg/hr (push-pull, category V refrigerants – R32, R410A, R404A, etc.). A1 and A2L refrigerants (including R32)
- VALUE VMV-1 – Smart digital vacuum gauge

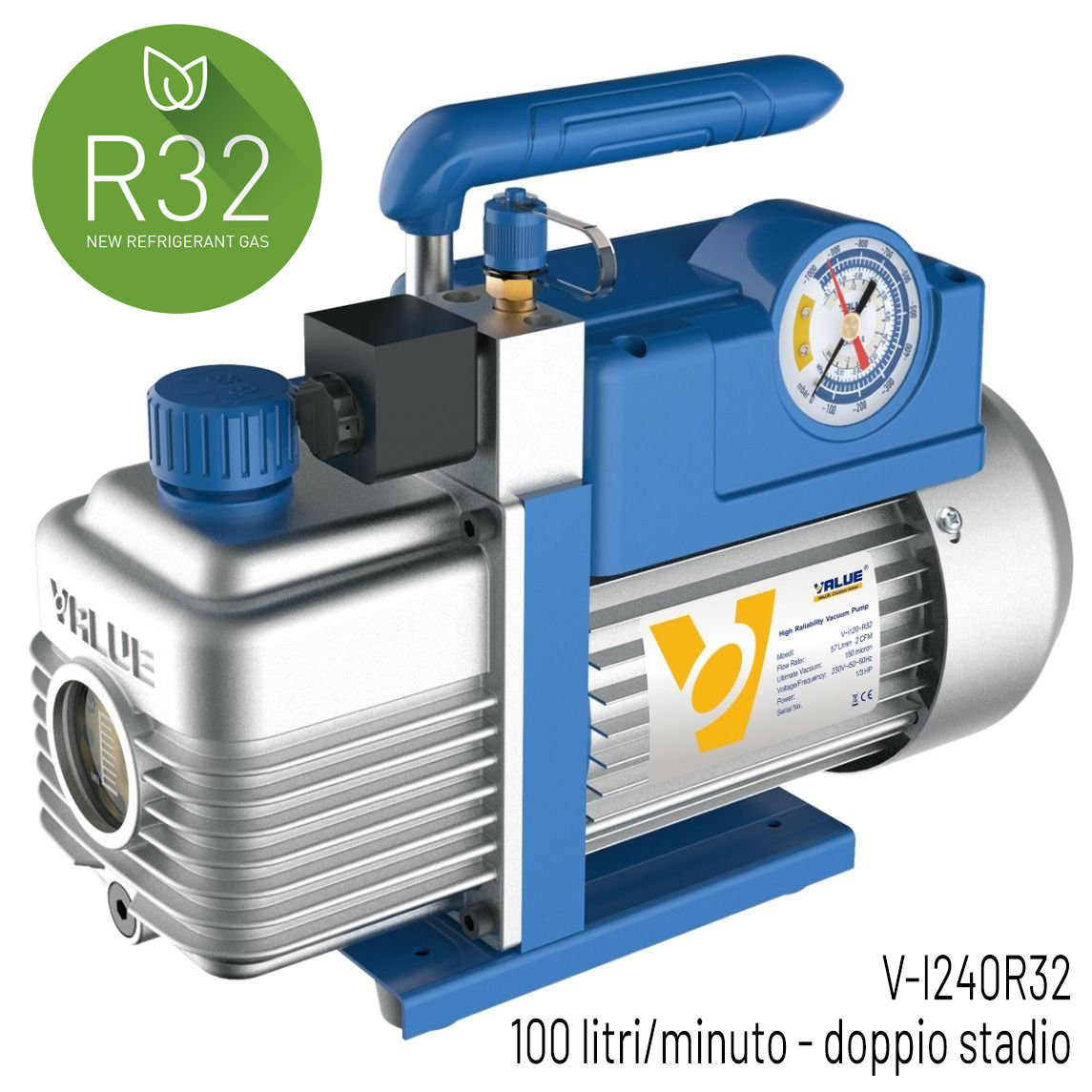

- Two-stage vacuum pump, also suitable for A2L refrigerants, capacity 100 l/min, 1/2 HP motor, 15 micron vacuum, with solenoid valve and vacuum gauge
- Dedicated vacuum pump hose, black, with ball valve, 3/8" fittings, length 150 cm
- VALUE VMC-1 – Digital multimeter clamp meter
- VALUE VIT-300S – Non-contact infrared thermometer
- Schrader valve core remover – Value VCR1 (suitable for R410A, R32 systems, 5/16" and ¼" SAE)

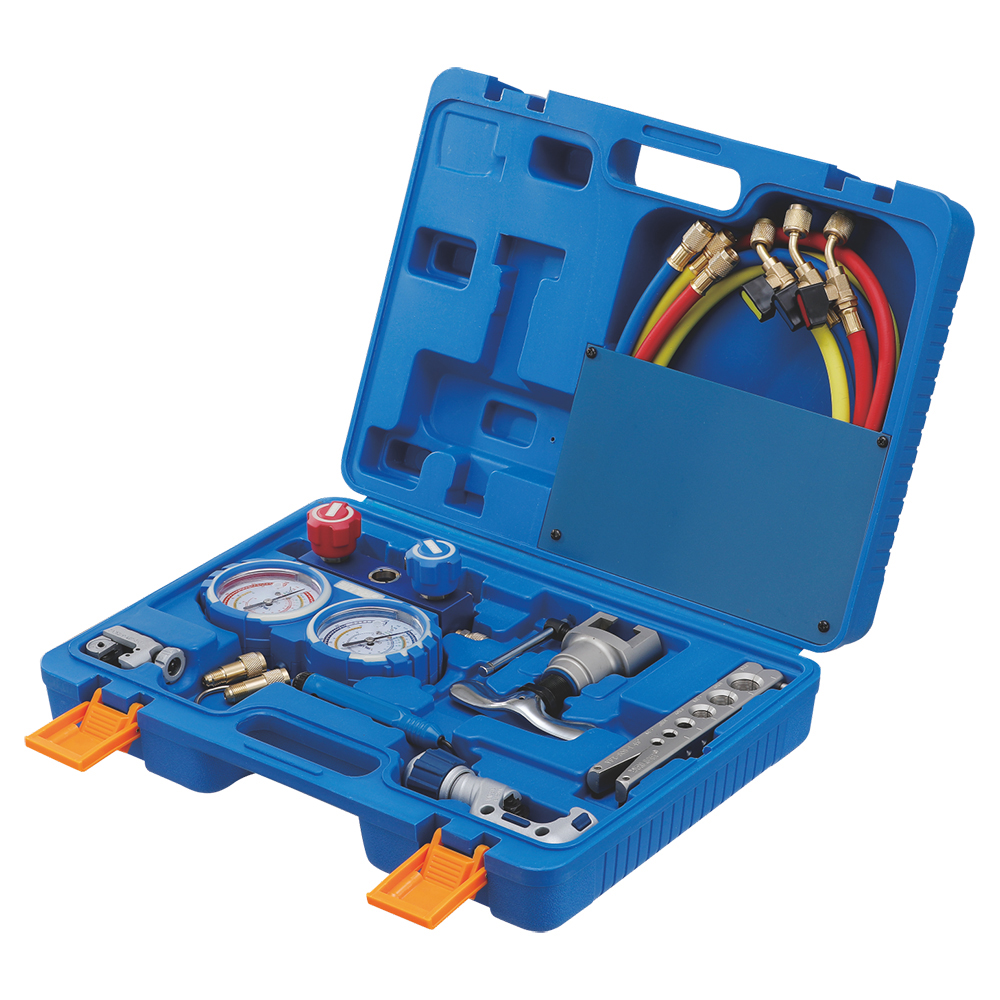

- Complete HVACR tool kit for installers, maintenance technicians and refrigeration engineers, in a sturdy plastic carry case, including: flaring tool, 2 tube cutters, VMG-2 analogue manifold gauge set, 3 flexible hoses l=150 cm, tube deburrer
- Maxi Flame Kit – Professional brazing kit (flame temperature up to 3,100°C/5,612°F), with pressure regulators and gauges, B-MAP cylinder + oxygen cylinder, mounted on a metal frame with handle for easy transport
- 12.5 L – 42 bar inert refrigerant recovery cylinder, complete with two-phase Y-valve (gas + liquid) – dual ¼" SAE Flare – 7/16" 20 UNF outlet + VDS + dip tube (sold separately)
- Shut-off valve, inlet 5/16" SAE female – outlet ¼" SAE male
- Shut-off valve, inlet ¼" SAE female – outlet ¼" SAE male
- Shut-off valve, inlet ½" ACME LH female – outlet ¼" SAE male
IMPORTANT: The electronic leak detector is supplied with a calibration certificate already issued by an accredited laboratory. Before being placed on the market, the instrument has already been calibrated at our expense at an accredited laboratory. Inside the packaging you will find a form to fill in with the details of the instrument you purchased (including invoice number and purchase date), to be sent to the certified email address: certificati-taratura@generalgas.it Once we receive the completed form, we will send you, free of charge, the calibration certificate issued in your company's name, showing the model and serial number of the instrument (certificate valid for F-Gas certification purposes).
