Electronic device specifically designed to detect the gas mixture of Hydrogen H2 (5%) / Nitrogen N2 (95%) and all Refrigerant Gases R134a - R410a - R407c - R1234yf - R32 - R404 - R448A - R449A - R452A - R600a - R290
Description:

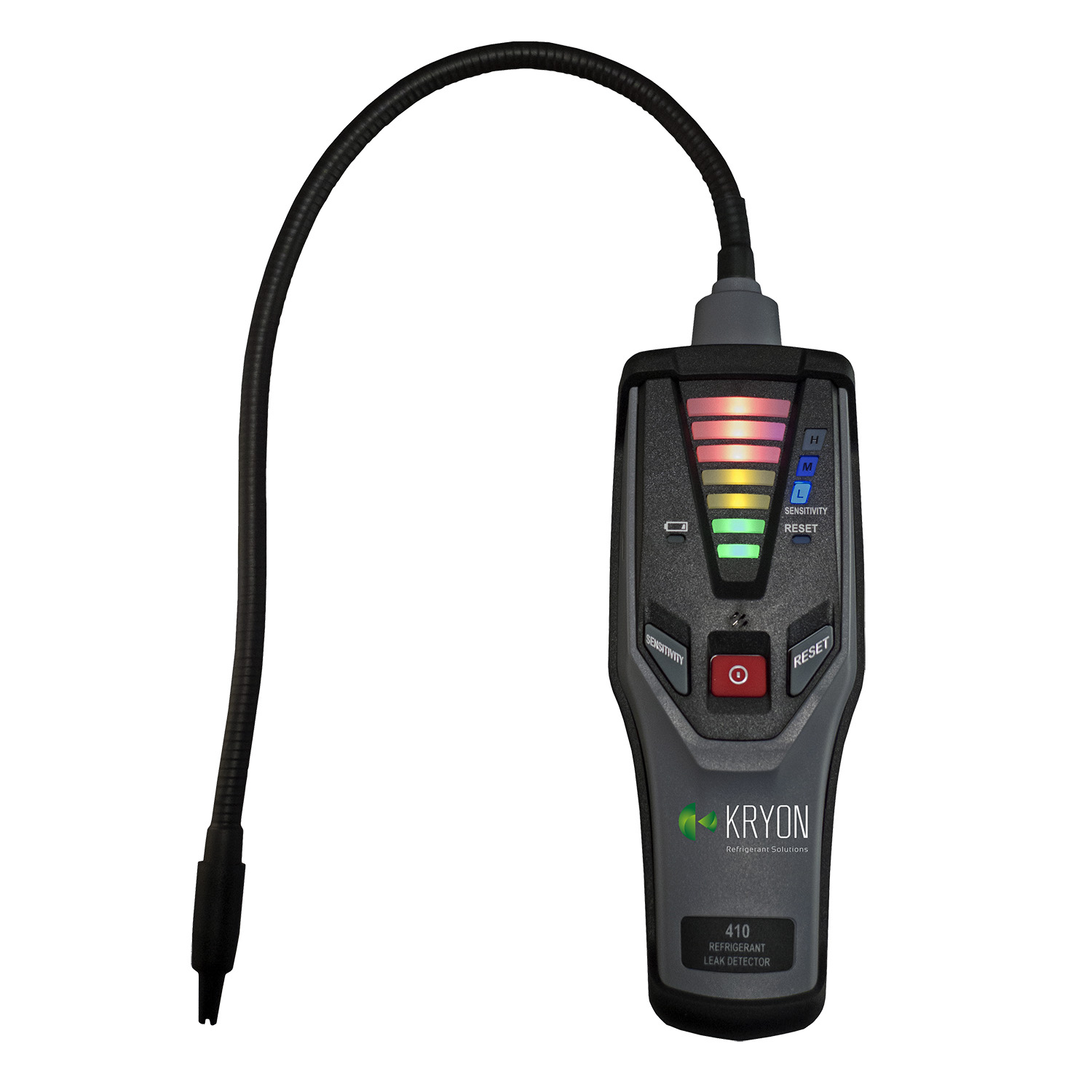

The leak detector is equipped with a heating sensor and a microprocessor which guarantees a very precise and accurate signal.
Thanks to the presence of an intensity regulator and 7 LED indicators, having a coloured visual scale function, the device guarantees the detection of the leakages less than 5ppm (3 grams/year).
Charger and batteries:
The instrument is already supplied with 4 non-rechargeable AA alkaline batteries. In addition, a 220V 50 Hz single-phase power supply unit is included in the package.
The power supply also allows connection to the MicroUSB socket, for direct powering of the leak detector; the leak detector has no electronic battery charging circuit (rechargeable batteries may be used, but these must be recharged with a dedicated power supply).
Technical Features:
- Semiconductor heated sensor
- 40 cm stainless flexible probe
- Operating temperatures from 0 to 40 °C
- 3 sensitivity levels
- Leak detection indicator with 7 LED tricoloured visual scale
- Detectable refrigerant gases: R134a-R1234yf-R410a-R404a-R407c-R32-R502- R600-R290
- Meets SAE J1627 CE regulations
- Power supply: 4 AA alkaline batteries (included in the package), or via power supply with connection to MicroUSB socket
- Power supply unit 220 V/ 50 Hz - 3.3 V / 0.5 A (included in the package)

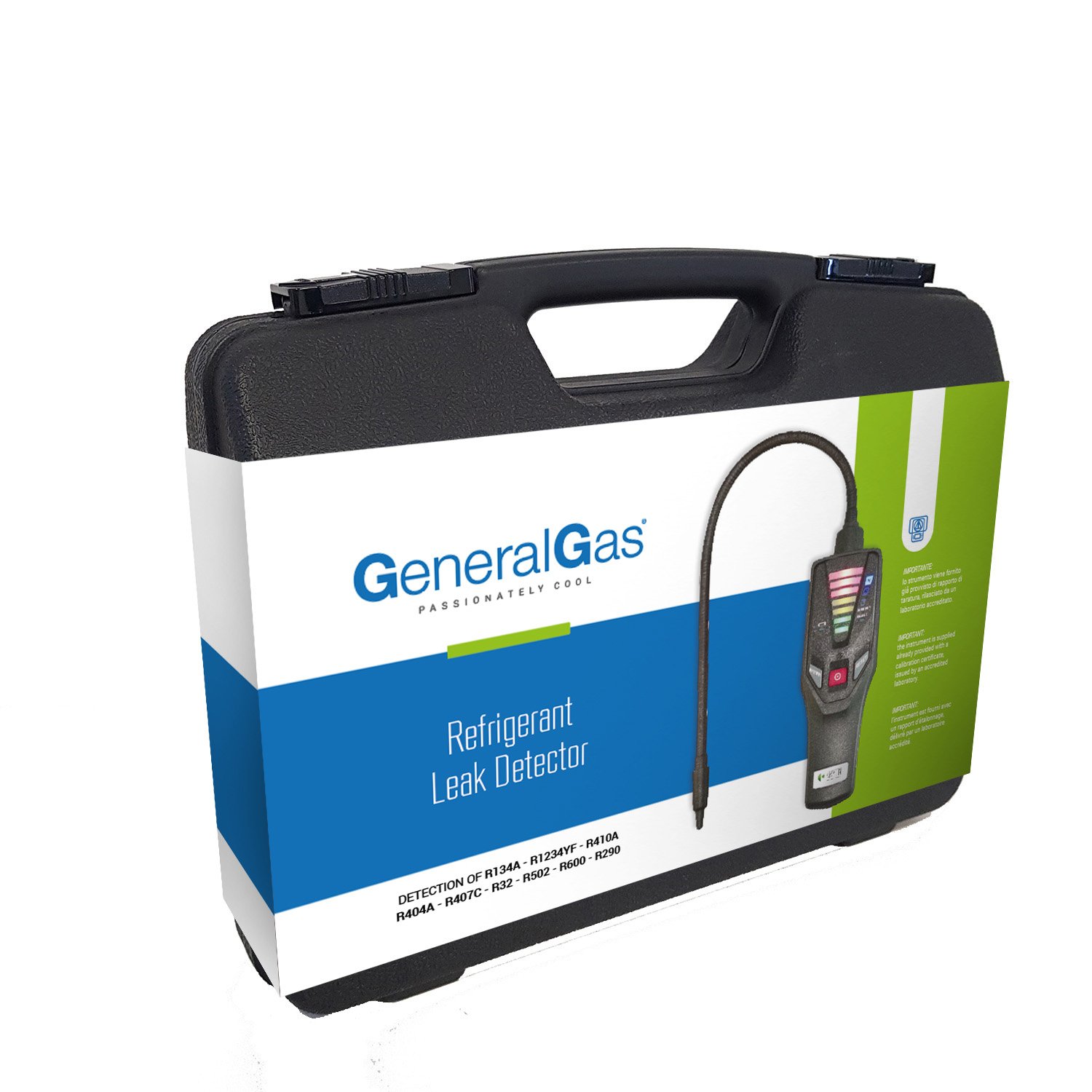

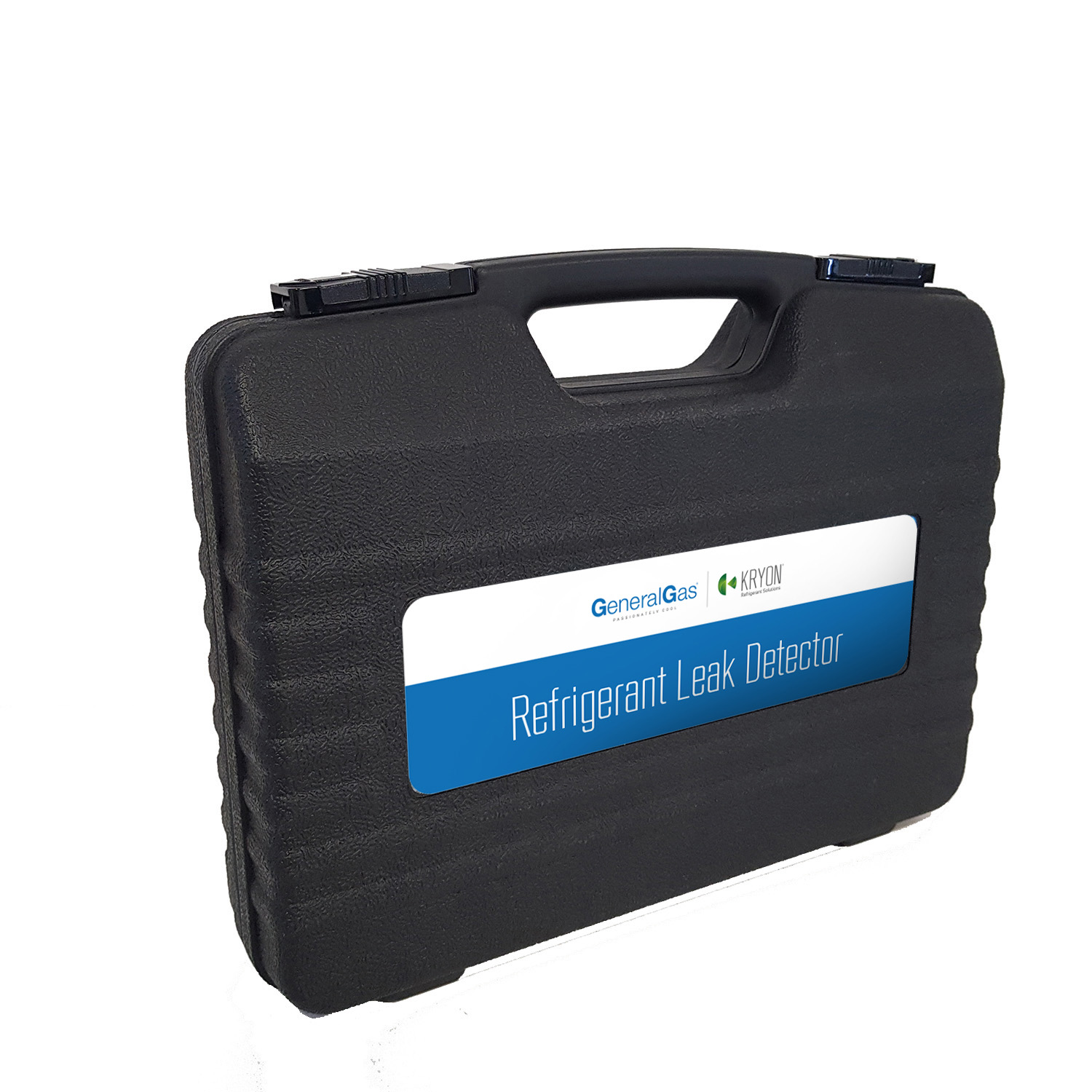

- Plastic Case for storage and transport
- Weight: 418 g (battery included)
IMPORTANT: the instrument is supplied already provided with a calibration certificate, issued by an accredited laboratory.
The instrument, before being marketed, has already been calibrated at our care and expense at an accredited laboratory.
In the package you will find a form to fill in, entering the data of the tool you purchased (including invoice number and date of purchase), and send to the e-mail address certificati-taratura@generalgas.it
As soon as we receive the completed form we will send you, free of charge, the calibration certificate made out to your company and bearing the model and serial number of the instrument (certificate valid for the purposes of F-Gas certification).
