Condensate Drain Pump with 1.8-Liter Tank – P580
Flow Rate: 580 liters/hour – Suitable for A/C systems up to 500,000 BTU/hour
Reliable, robust, and virtually maintenance-free
WIPCOOL’s continuous focus on innovation has resulted in a market-leading range of tank pumps, designed to meet a wide variety of application needs. With reliability as the main decision-making factor, these pumps are engineered to deliver performance even under the most demanding conditions, including hot water drainage.

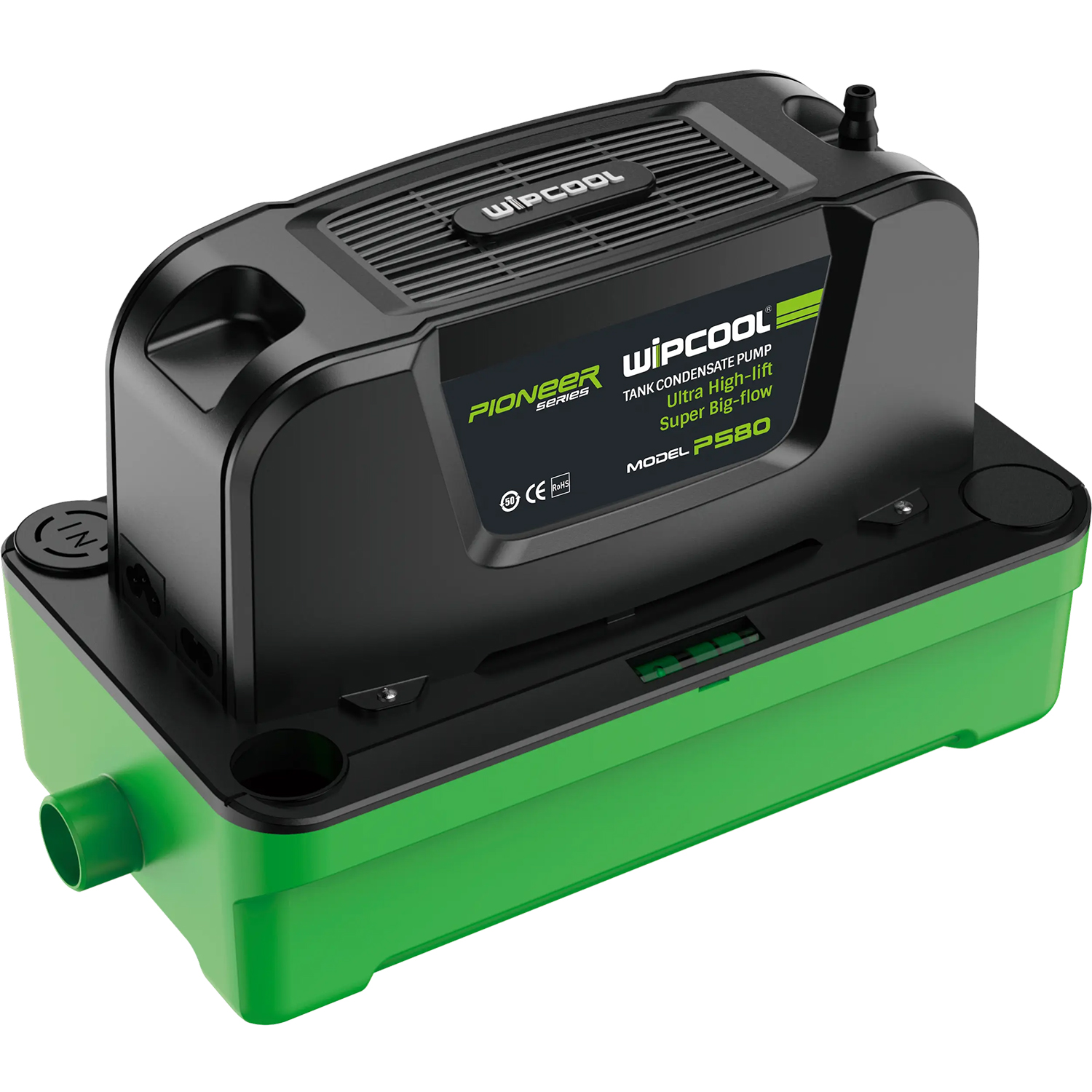

The WIPCOOL P580 high-lift tank pump is designed to collect condensate water from refrigeration and air-conditioning systems. It is particularly suitable for applications requiring high lift and large flow rate. The pump operates automatically as the water level rises, discharging up to a height of 12 meters.
The P580 features two high-quality switches, activated by a dual sensor control system (probe and float). One switch controls the centrifugal pump, while the other acts as a high-level safety switch.
Equipped with a high-performance brushless motor, it ensures long-lasting and reliable operation. In the event of a pump failure, the device can automatically shut down the refrigeration unit and simultaneously trigger an optional audio and/or visual alarm. It also includes a built-in buzzer to alert users in case of drainage failure.

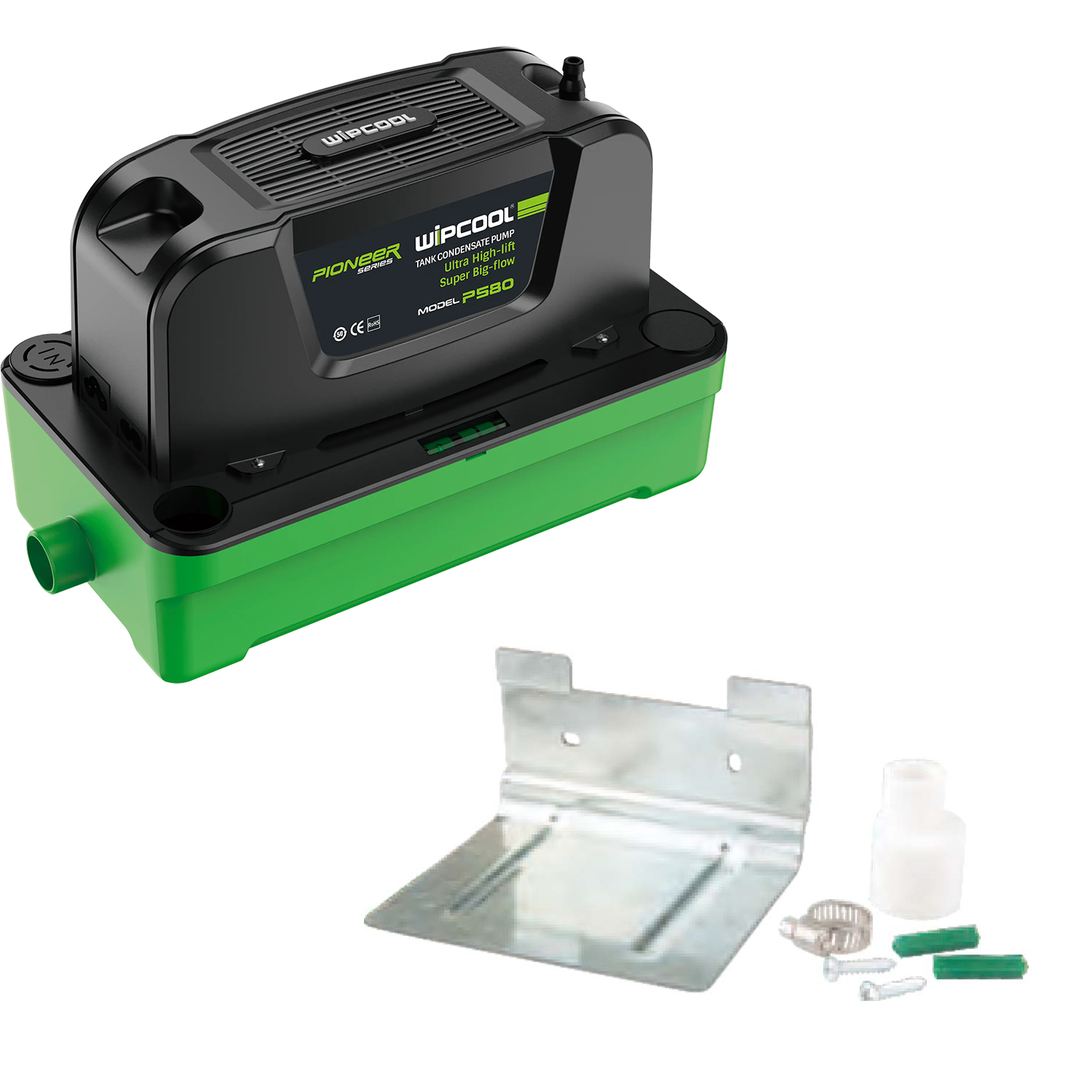

The pump is designed for easy installation and maintenance, featuring a non-return valve, an integrated spirit level, and a metal suspension plate. There are five optional inlets available: four on the top and one on the side, offering flexible installation options.
Suitable for: ducted units, floor-standing and frame units, cassette units.
Ideal for large commercial systems (dehumidifiers, ice makers, and air handling units).
Model: P580
Voltage: 230V~/50-60Hz or 100-120V~/50-60Hz
Max. Discharge Head: 12 m (40 ft)
Max. Flow Rate: 580 l/h (153 GPH)
Tank Capacity: 1.8 liters
Sound Level at 1 m: 60 dB(A)
Ambient Temperature: 0℃ to 50℃
