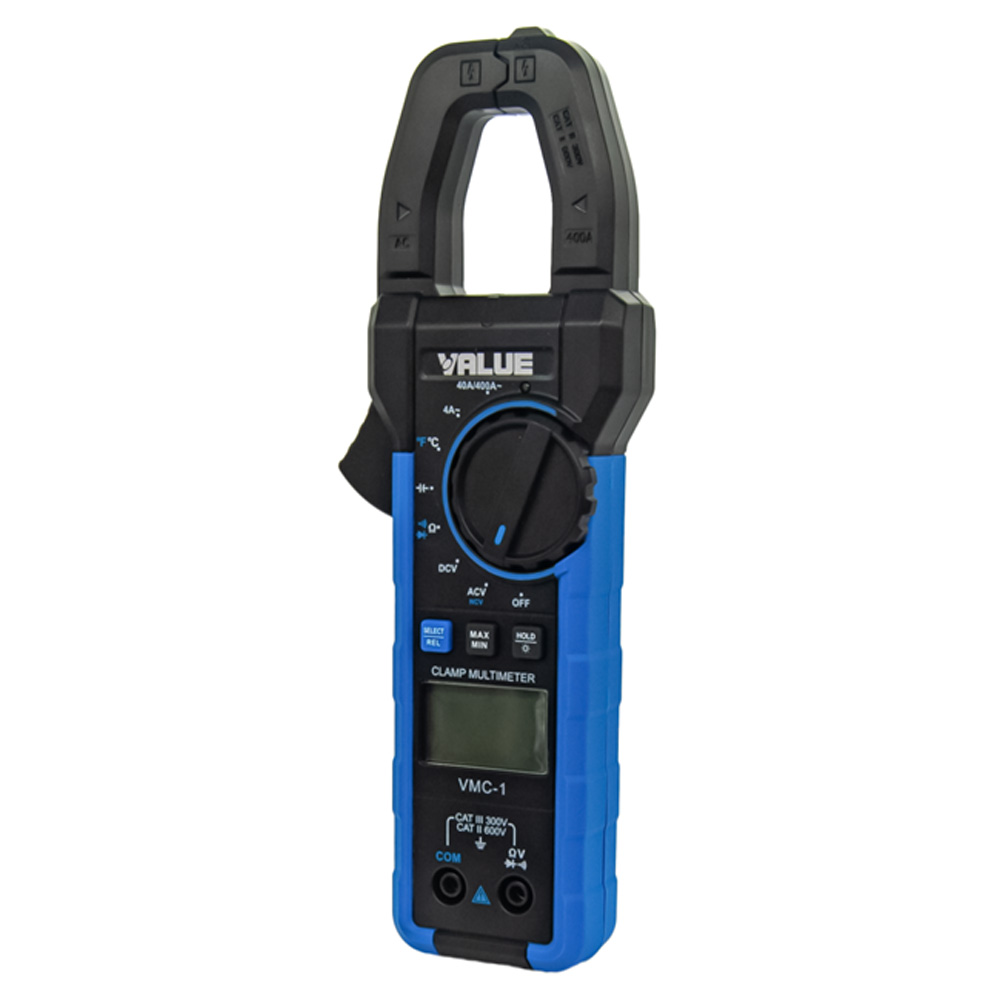

4000-count hand-held clamp meters with auto range feature. The meter is designed with ergonomic structure and overload protection for each range, which makes it superior tool for electricians.
VMC-1 can measure AC/DC voltage, AC current, resisance, diode, contiuity, capacitance, temperature and perform data hold, max/min measurement, relative value measurement, NCV (non-contact voltage), low battery indication, auto/visual alarm and auto power off functions.
Precise Measurement
High precision chip
LCD Large screen backlit display
Compact design
28mm jaw
Technical data:
Max Measurement Voltage 600V
Max Measurement AC Current 400A
Max Measurement Capacitance 40 mF
Temperature Measurement Range -40 °C to ~1000 °C
Technical features:
LCD display : max. disp. value 4099
Polarity display : automatic
Overload display : “OL” or “-OL”
Low battery indication : yes
Measurement deviation: if the conductor being measured is not placed in the center of the jaw during current measurement, it will cause extra ±1.0% reading error
