SC260 – Compact Clamp Meter with True RMS
IMPORTANT: the instrument is supplied already provided with a calibration report, issued by an accredited laboratory.
The instrument, before being marketed, has already been calibrated at our care and expense at an accredited laboratory.
In the package you will find a form to fill in, entering the data of the tool you purchased (including invoice number and date of purchase), and send to the e-mail address certificati-taratura@generalgas.it
As soon as we receive the completed form we will send you, free of charge, the calibration report made out to your company and bearing the model and serial number of the instrument (certificate valid for the purposes of F-Gas certification).
Not just for small jobs.
- True RMS
- Volts AC/DC
- Temperature
- Bright backlight

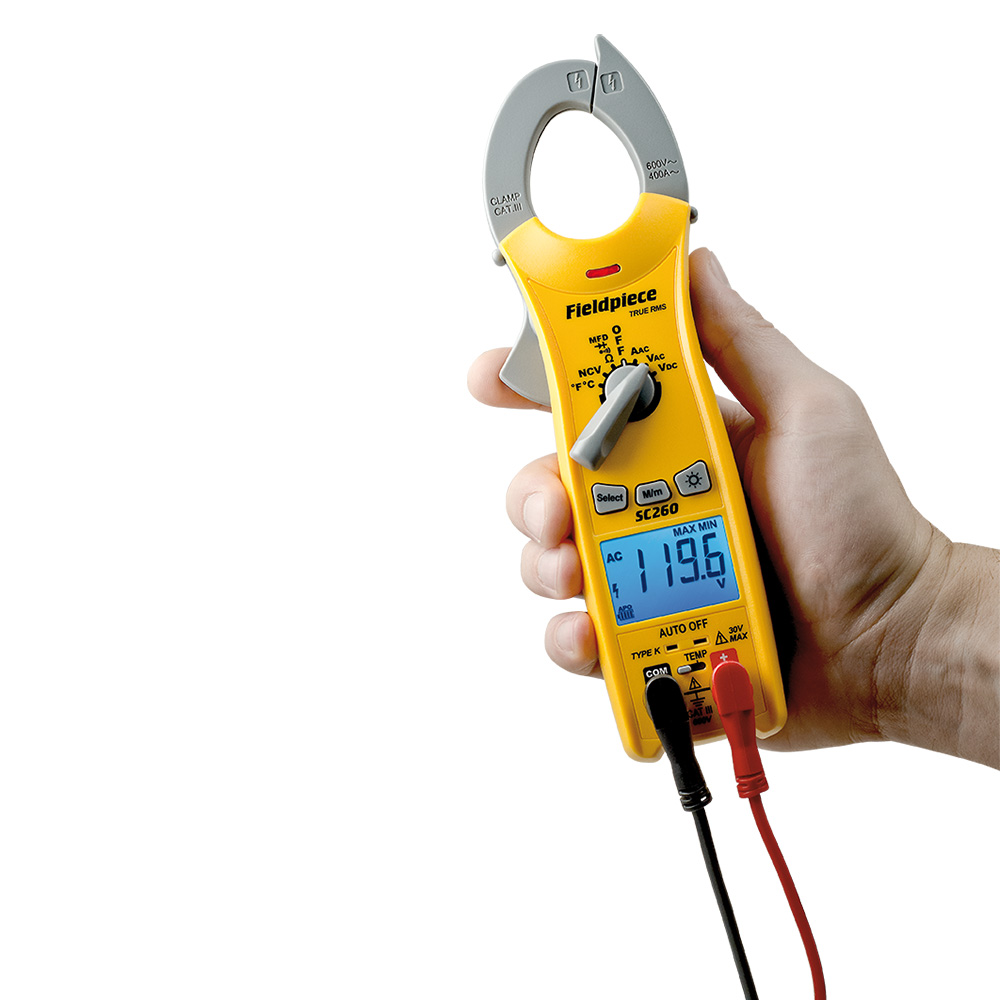

The SC260 Compact Clamp Meter is a great meter for testing HVACR electrical measurements. It includes True RMS measurements so you can test variable frequency drives more accurately, along with temperature in both Fahrenheit and Celsius. The SC260 also features a backlight display for reading measurements in poorly lit places, and a sturdy swivel magnet for hands free measurements.
The SC260 helps you save time with the new Auto Select mode. Simply set the dial and connect your leads, the clamp meter will automatically select the appropriate measurement depending on what it detects. While the high temperature resistance allows you to move from a cold freezer to a hot rooftop and get accurate temperature measurements that lesser thermometers cannot measure properly.
- Volts AC/DC
- True RMS
- 400 Amps AC
- Temperature F/C
- Capacitance
- Non-contact voltage
- 40 Mega Ohm with 0.01 resolution
- Continuity
- Diode Test
- Max/Min/Hold
- LCD Backlight
- Low Battery Indicator
- Hi-voltage Warning
Includes:
- SC260 Meter
- ADLS2 Deluxe Silicone Lead Set with Gold Plated Tips and Removable Sheath
- ATB1 Wrap Tab Type K Thermocouple
- Velcro Strap
- 9V Battery
- ANC4 Padded Case
CALIBRATION CERTIFICATE - IMPORTANT NOTE:
The FieldPiece instrument is accompanied by a certificate issued by the manufacturer, which shows the serial number (from which the date of production can be obtained).
See example:
