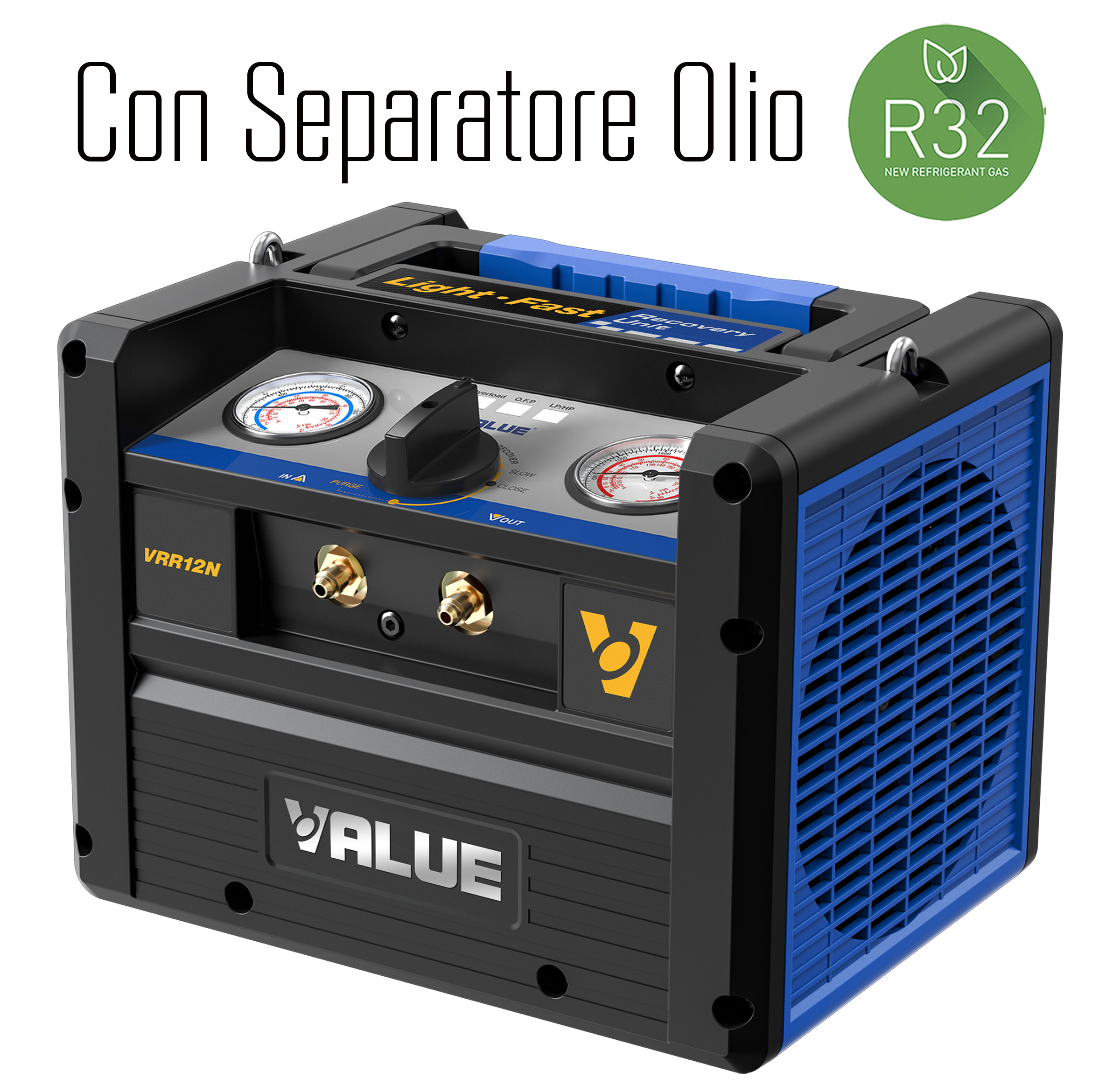

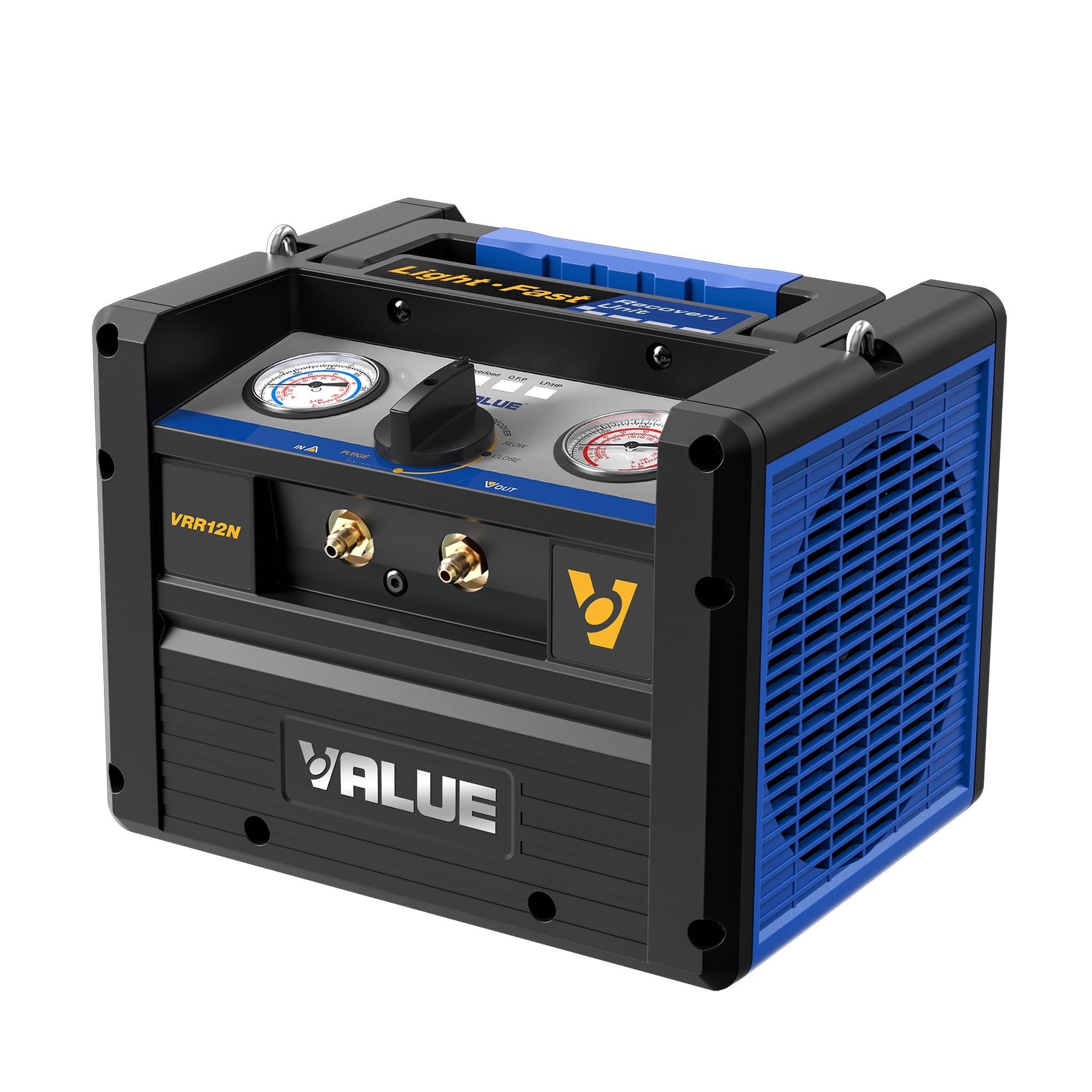

The VRR12N-OS Mini Portable Recovery Station is a compact and robust tool, featuring a molded plastic case that is shock- and corrosion-resistant. Designed for fast and professional operations, it is specifically developed for R1234yf and R32 refrigerant gases.
Main Features:
Mini refrigerant recovery unit with oil separator
Compliant with ISO 9001, CE certification, and RoHS 2002/95/EC; meets NFE35421 standard
3/4 HP oil-less piston-style compressor
Oil-filled pressure gauges for accurate pressure reading
High-pressure safety cut-off: 38.5 bar / 3850 kPa (558 psi)

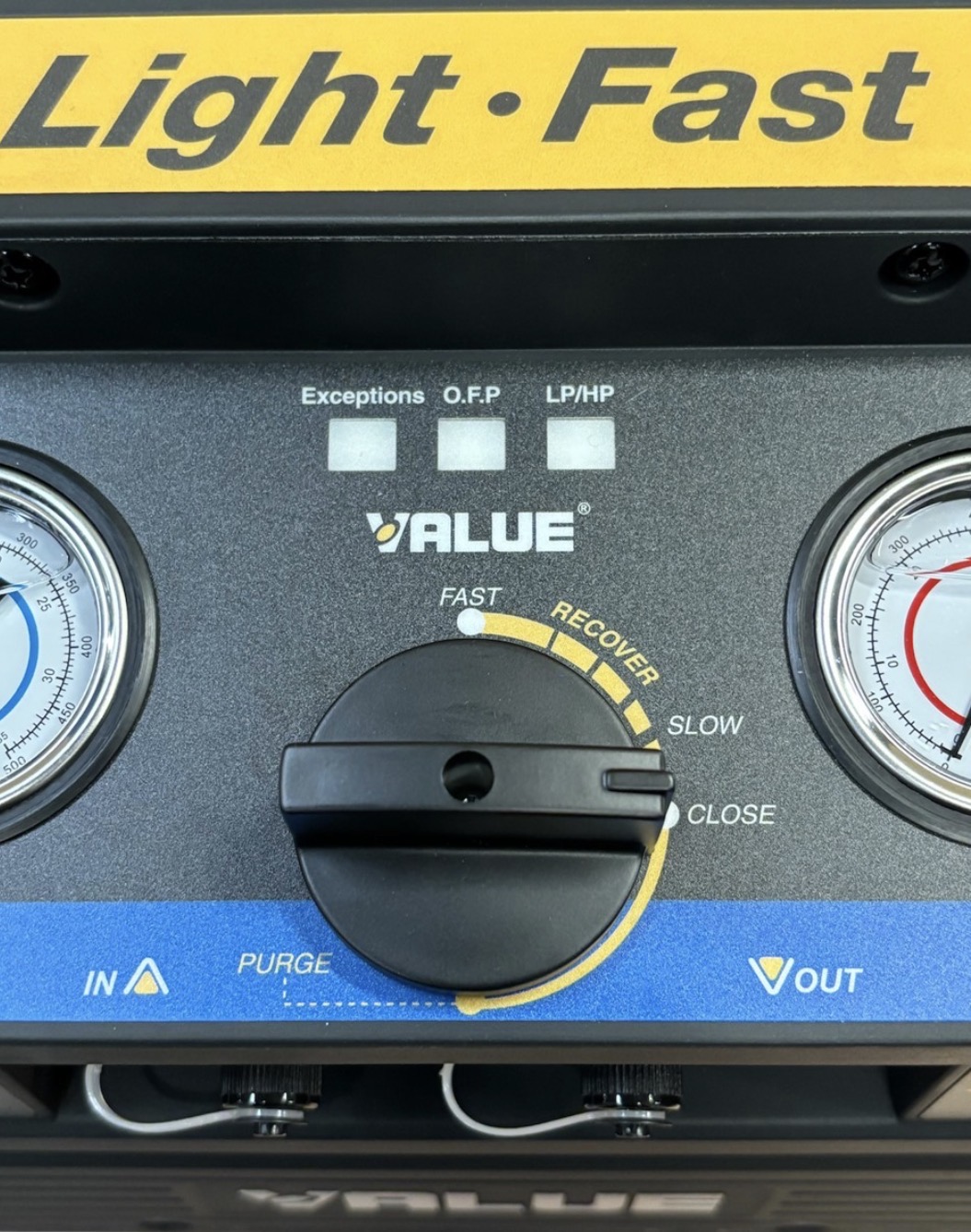

Self-clearing valve with “on the fly” purge function
Refrigerant Recovery Rates:
Vapor: > 0.28 kg/min
Liquid: > 2.42 kg/min
Push-Pull: > 6.93 kg/min
Technical Data:
Net weight: 8.9 kg
Dimensions: 310 x 240 x 245 mm
Power supply: 220V-240V, 50-60 Hz
Operating Instructions:
Always use a scale to avoid overfilling the tank (tank may explode if filled beyond 80% due to liquid expansion)
Always use a filter between the recovery unit and the inlet hose for protection and efficiency
Ideal for: HVAC-R technicians who need fast, safe, and reliable refrigerant recovery with compact size and high portability.
Vapor: Cat III 0.22 / Cat IV 0.28 / Cat V 0.28 Vapor: Cat III 0.44 / Cat IV 0.55 / Cat V 0.55 Liquid: Cat III 1.76 / Cat IV 1.98 / Cat V 2.42 Liquid: Cat III 3.30 / Cat IV 3.85 / Cat V 3.85 Push/Pull: Cat III 5.06 / Cat IV 6.16 / Cat V 6.93 Push/Pull: Cat III 8.25 / Cat IV 9.35 / Cat V 10.45
