The VCB-1 is a backpack-style cleaning machine for HVACR units, designed to provide full operational autonomy on site without relying on external water or power sources. The integrated 8-litre tank and 18V/4Ah lithium-ion battery deliver up to 70 minutes of continuous runtime, enough to service multiple units in a single work session.

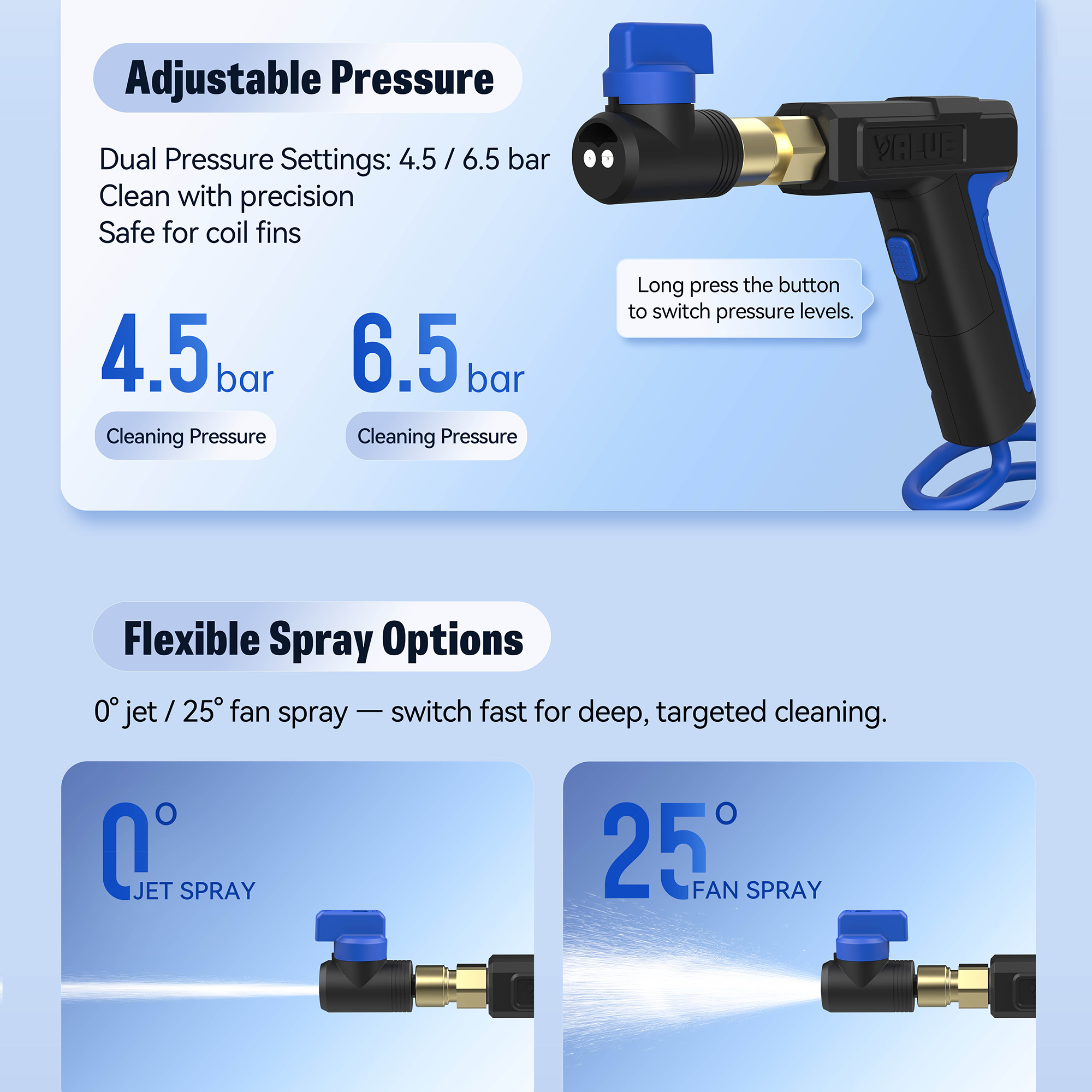

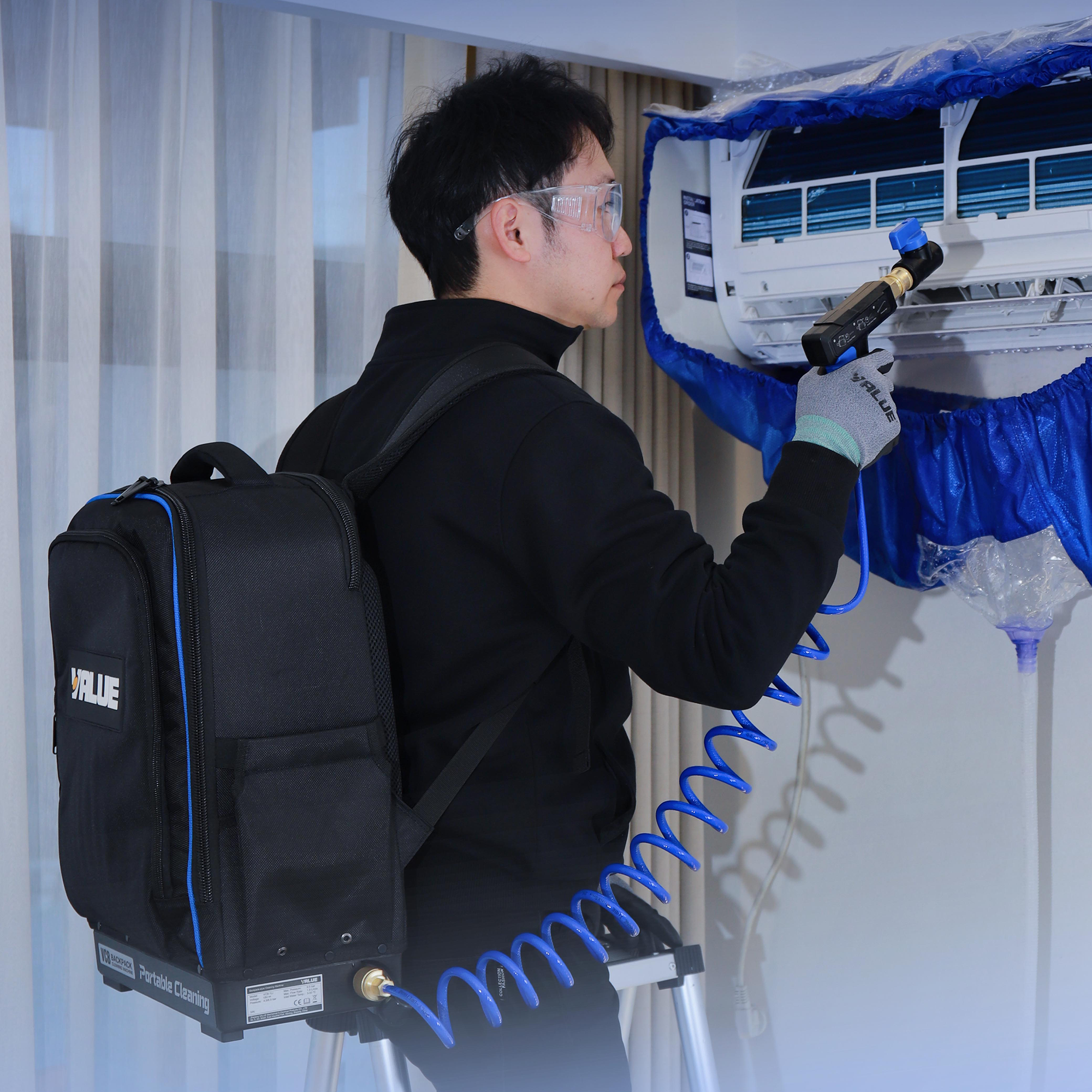

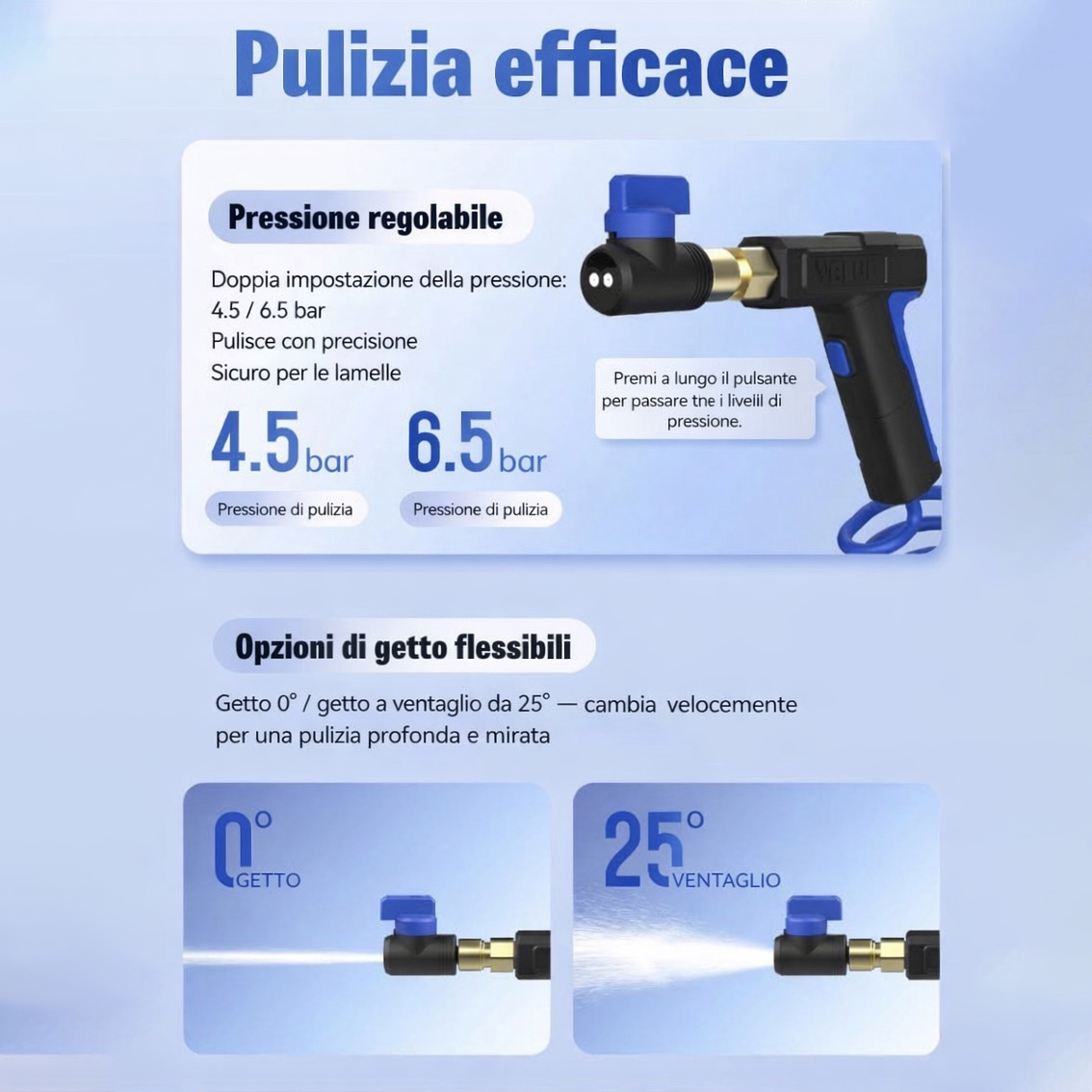

The backpack design keeps both hands free while moving between units. The two selectable pressure settings (4.5 / 6.5 bar) allow the output to be matched to the sensitivity of the component being cleaned — from delicate fin coils to surfaces requiring more intensive washing. The 25° fan spray nozzle ensures even coverage even in hard-to-reach areas; straight jet mode (0°) is available for targeted close-range work.
The integrated safety pressure cutoff (9–10 bar) and maximum flow rate of 1.8 L/min ensure controlled, safe performance. Automatic shut-off after 10 minutes of spray gun inactivity protects battery life.

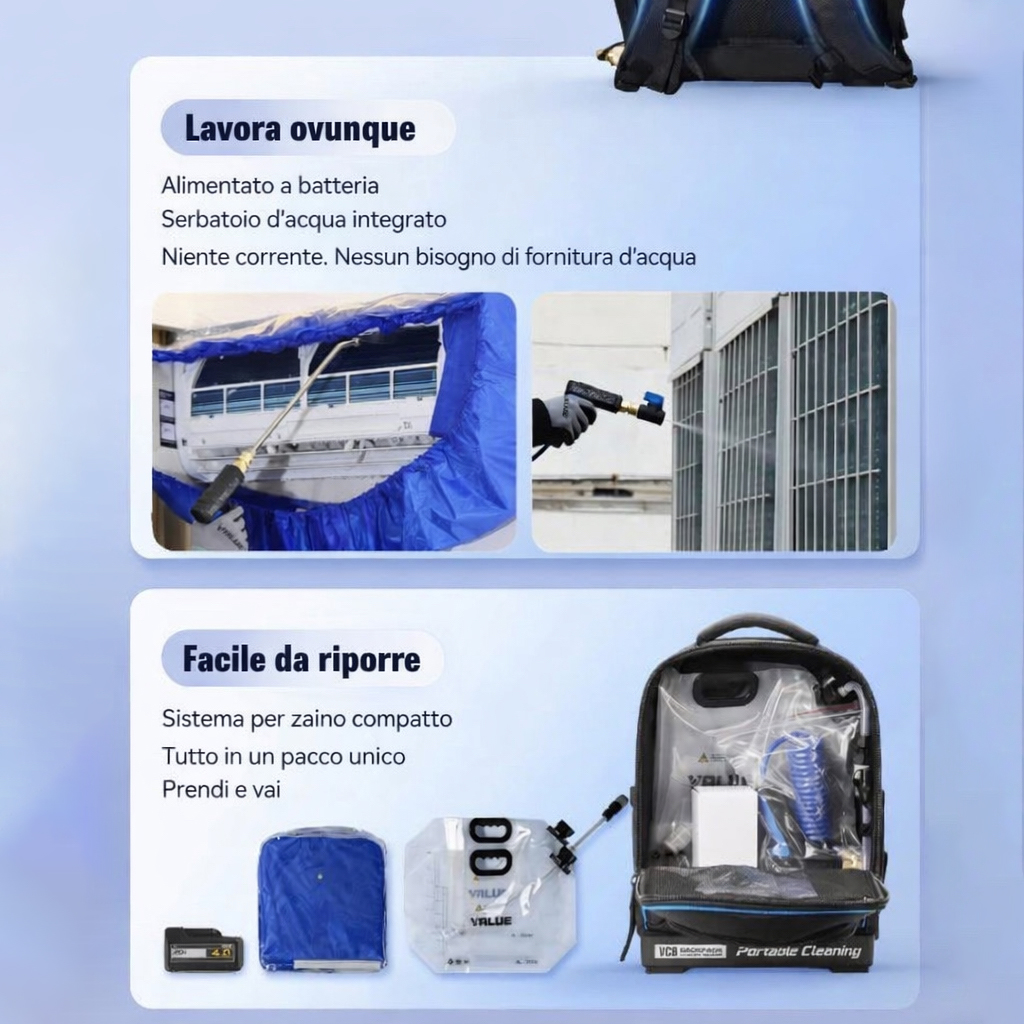

The standard kit includes: main unit, spray gun, 8 L water tank, and extension rod. Ready to use straight out of the box.
Key Features
Backpack design for maximum mobility with hands-free operation
Integrated 8 L tank — no external water source required
Li-ion 18V / 4Ah / 72Wh battery included — no power outlet required
Fast charging: ≤ 150 min with 35W charger
Up to 70 minutes of continuous runtime
Two selectable pressure levels: 4.5 bar (gentle) and 6.5 bar (intensive)
Integrated safety pressure cutoff: 9–10 bar
Maximum flow rate: 1.8 L/min
Two spray patterns: 25° fan spray and 0° straight jet
Automatic shut-off after 10 minutes of inactivity
Low battery alert (audible + 4-level LED indicator)
Low noise output: ≤ 65 dB(A)
Technical Specifications
Parameter
Value
Model
VCB-1
Battery
Li-ion 18V – 4Ah – 72Wh
Runtime
70 min
Charging Time
≤ 150 min (35W charger)
Pressure Settings
Two levels (high / low)
Cleaning Pressure
4.5 / 6.5 bar
Protection Pressure
9–10 bar
Maximum Flow Rate
1.8 L/min
Operating Temperature
0 – 50 °C
Water Inlet Temperature
5 – 50 °C
Dimensions
175 × 330 × 460 mm
Noise Level
≤ 65 dB(A)
Weight
5.4 kg
Standard Kit
Main unit + spray gun + 8 L water tank + extension rod
Recommended Use

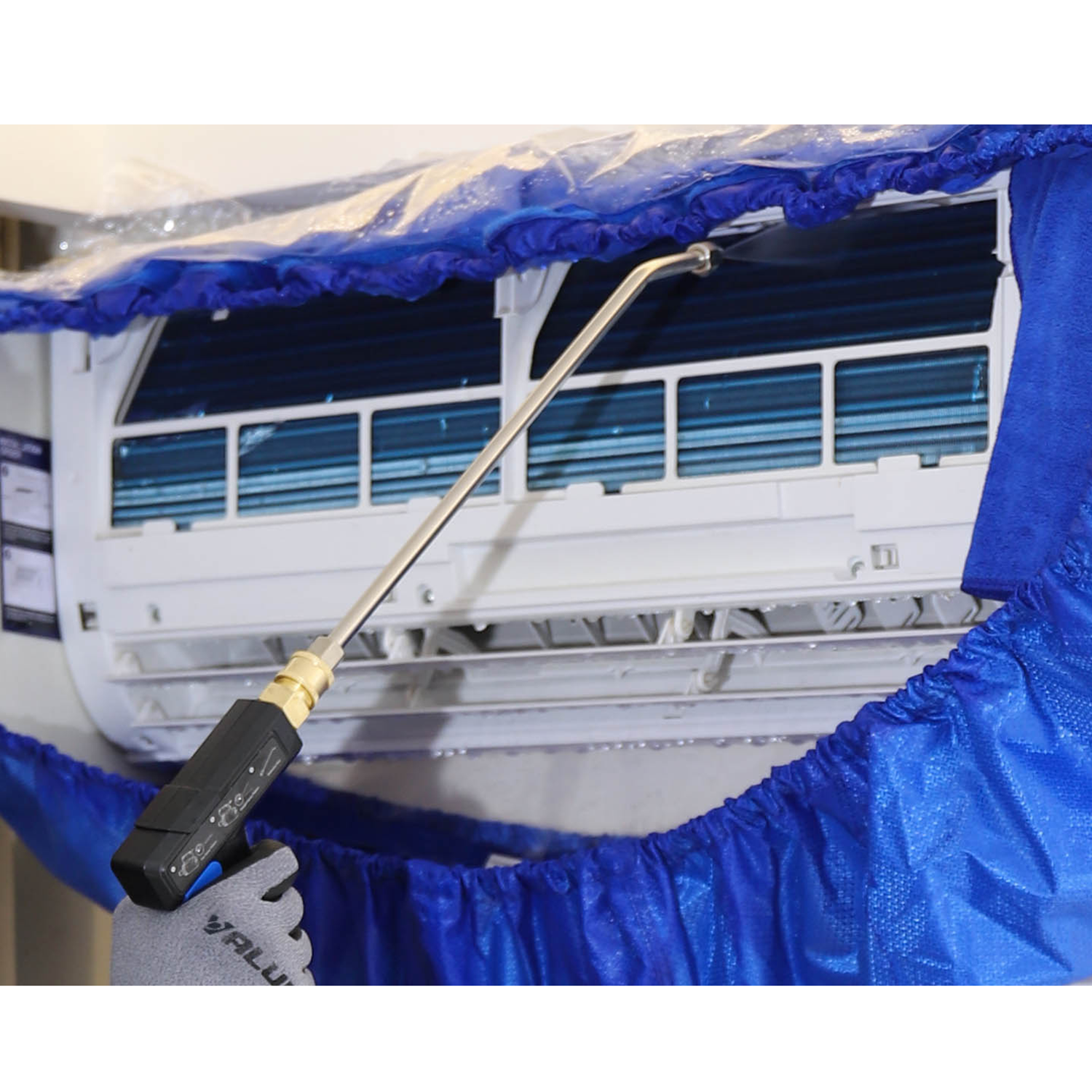

Cleaning of indoor and outdoor units of air conditioners, heat pumps, and refrigeration systems. Suitable for routine and non-routine maintenance in locations where access to mains water or power outlets cannot be guaranteed.
