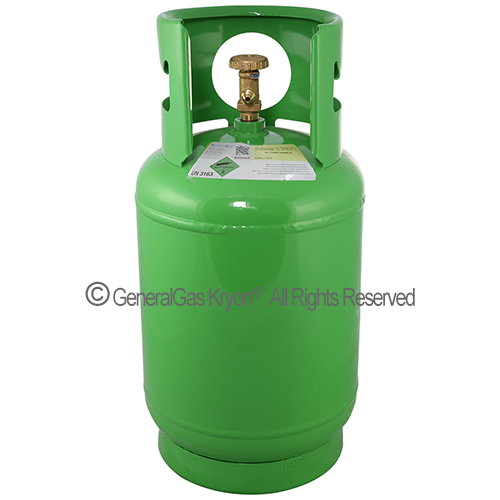

R407F Performax® LT in T-PED refillable KryoBox Cylinder 13,6 Lt / 42 bar - 12 Kg


R407F Performax™ LT in Bombola Kryobox 13,6 litri / 42 bar - 12 Kg - Foto 1
R407F Performax™ LT in Bombola Kryobox 13,6 litri / 42 bar - 12 Kg - Foto 2
R407F Performax™ LT in Bombola Kryobox 13,6 litri / 42 bar - 12 Kg - Foto 3
R407F Performax™ LT in Bombola Kryobox 13,6 litri / 42 bar - 12 Kg - Foto 4

RFQ for large quantities
(minimum 10 pcs)
Need to buy large quantities? Contact us for a customized proposal.
    1.824 (1.674)
    IPCC AR4 (AR5)

Temperature Range

image image
Share:

The refrigerant with high energy efficiency index


Performax® LT is a non-ozone depleting and easy-to-use HFC refrigerant developed to replace R22, R502 and refrigerant mixtures containing HCFC, in commercial and industrial direct expansion refrigeration systems (medium and low temperature).
Performax® LT, thanks to its thermodynamic characteristics, lends itself to retrofit systems working with R 404A/R 507, any time you want to:

  • save energy (more or less 10-12%);
  • reduce GWP of the refrigerant used, from 3.900 kg CO2/kg refr. to 1.824 kg CO2/kg refr.

Applications

Performax® LT is used in commercial and industrial direct expansion refrigeration (medium and low temperature), including supermarket, food industry, chemical and pharmaceutical industry.

Performance

  • Performax® LT is an easier conversion option compared to R-404A and R-507, since its refrigerating capacity, power absorbed by the compressor, power exchange condenser and thermostatic delivery valves much more similar to R-22.
  • Performax® LT has a superior energy efficiency compared to alternative mixtures.
  • Its delivery temperature is much lower than delivery temperature of R-22.

Recommended Lubricants

Performax® LT needs Polyol Ester Oil (POE) as lubricant.
In some cases, when the circuit is compact, the flow velocity during gas and liquid phases are correct, and a filter using coalescence technology is downstream of the compressor, Performax®LT can work also with alkylbenzene oil. Most of the times, using this oil has the advantage of not requiring the replacement of seals.

KryoBox® Cylinders

KryoBox® cylinders are helpful every time a limited quantity of refrigerant charge is needed.

These cylinders are light and easy to handle compared to the traditional ones, therefore their transportation is much easier. KryoBox® cylinders are available in two formats, 6,4 liters and 13,6 liters; they are manufactured in full compliance with T-PED (Transportable Pressure Equipment Directive) and are packed in high-strength cardboard boxes in order to make their transport and storage on the shelf much easier.

KryoBox® cylinders R134a (AUTO) are provided with a special quick coupling automatic valve that prevents leaks that usually occur with plug valves; standard valve 1/4” with handwheel and safety device is also available for all refrigeration and residential air conditioning applications. In addition, KryoBox® R410A cylinders are supplied with an adapter with outlet 5/16" SAE.

We have always been sensitive to environmental issues; with the “F-Gas-Friend”, General Gas has implemented the F-Gas Directive by buying back the refillable KryoBox® Cylinders, cylinders, so that they are not wasted in the environment and can be regenerated and filled again.

Performance

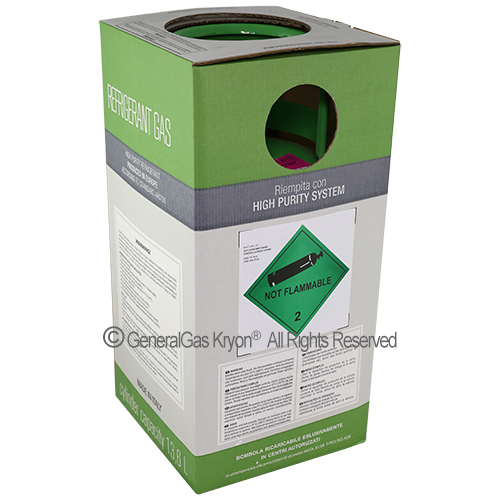

KryoBox® cylinders are light but they are also sturdy thanks to the protection of high-strength cardboard. Cardboard boxes are provided with a special aperture that allows you to connect the charging hose to the outlet valve, without having to remove the cylinder from its cardboard box.

Even in upside down position, it is possible to mount the hose in such a way that it is easy to open the valve while taking the liquid gas phase.

KryoBox® cylinders are refillable; they can be regenerated and filled again. In that case a yellow label (F-Gas Friend) will be stuck on the cylinder.

Signup or Signin for Download

Data sheet Signup or Signin for Download
Material Safety Data Sheet Signup or Signin for Download
Enthalpy–entropy chart Signup or Signin for Download
Technical Data Sheet - KryoBox Cylinders Signup or Signin for Download
