K-Leak Tester N2H2 PREMIUM France - Nitrogen/hydrogen leak detection kit for Refrigeration & A/C systems
Also suitable for connection to industrial nitrogen and forming gas cylinders, with 21.7 x 1/14" right-hand female outlet
Compatible with Kryon® HydroCheck cylinder (nitrogen/hydrogen blend +5% hydrogen) 5 litres – 1 m³
The K-Leak tester is an essential piece of equipment that allows refrigeration and air conditioning systems to be pressurised; the system works by simulating the operating pressure reached by the system under working conditions. Using K-Leak, the refrigeration technician will be able to pressurise the system to the correct working pressure according to the type of refrigerant gas used; the operating pressure is displayed on the pressure gauge, which features colour-coded sectors depending on the gas charged into the system. Once the operating pressure has been reached, the refrigeration technician will be able to identify any leaks in the system caused by manufacturing defects, component failures, cold welds or improperly executed flanged joints; these leaks will obviously result in a pressure drop in the system, which can be easily detected by reading the pressure gauge, specifically designed for this purpose. Once the source of the leak has been identified and remedied, the system – properly tested and optimised – can be made available to the end user.
Using the kit with a nitrogen/5% hydrogen blend, it is possible to detect leaks of less than 2 grams/year.

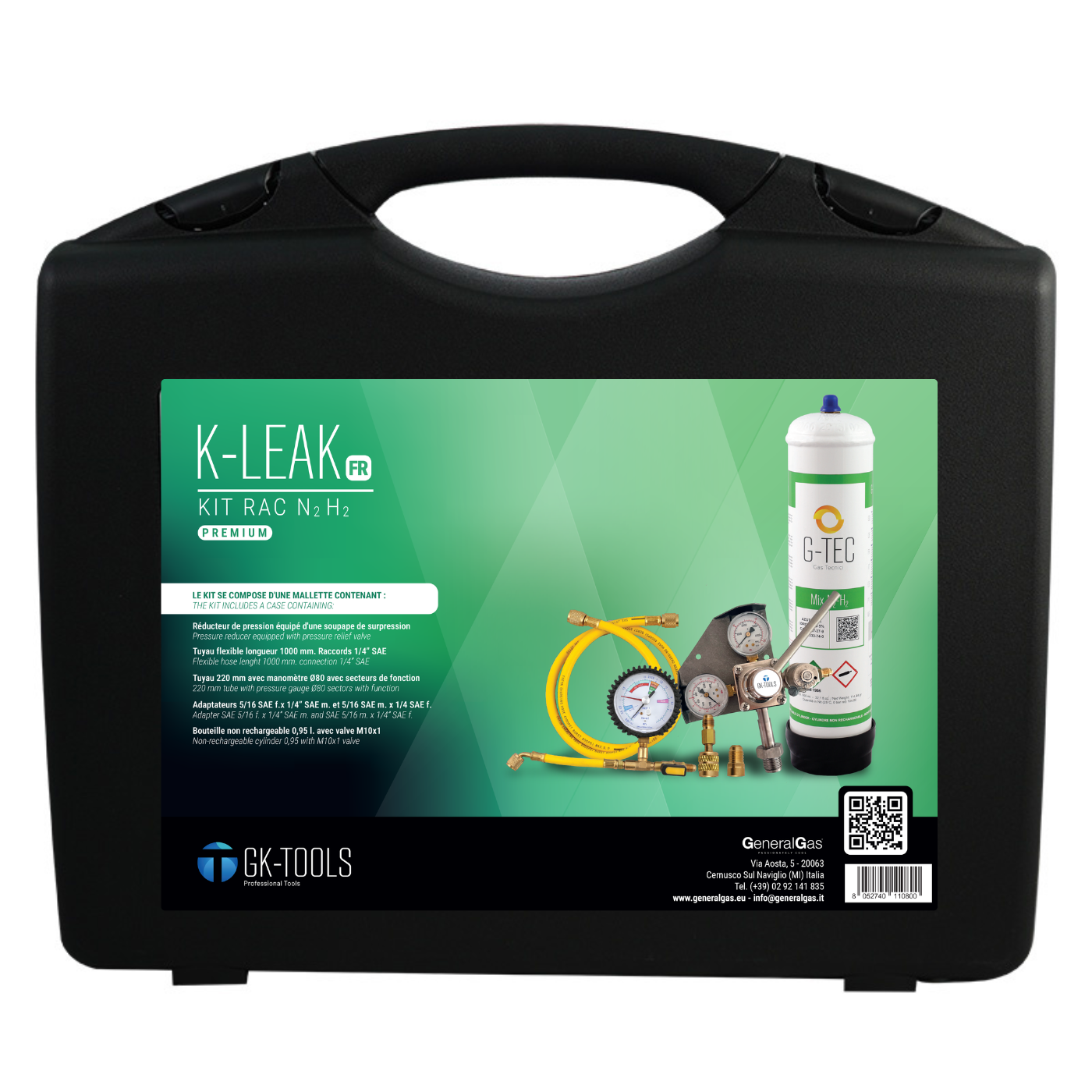

The K-Leak Tester nitrogen/hydrogen kit includes:
- Plastic carry case
- Yellow flexible hose with ball valve and pressure gauge (colour-coded sectors according to gas type)
- Yellow flexible hose, length 1,000 mm – 4,000 psi
- ¼" SAE female – 5/16" SAE male adapter
- ¼" SAE male – 5/16" female adapter
- Nitrogen pressure regulator (maximum outlet pressure 50 bar) PREMIUM France
- G-TEC nitrogen/5% hydrogen (N2-H2) cylinder – capacity 0.95 litres – blend content N2/H2 105 Nl/114 g
- Plastic support base for 0.95 l nitrogen cylinder
- Cardboard box
- Kit instructions
