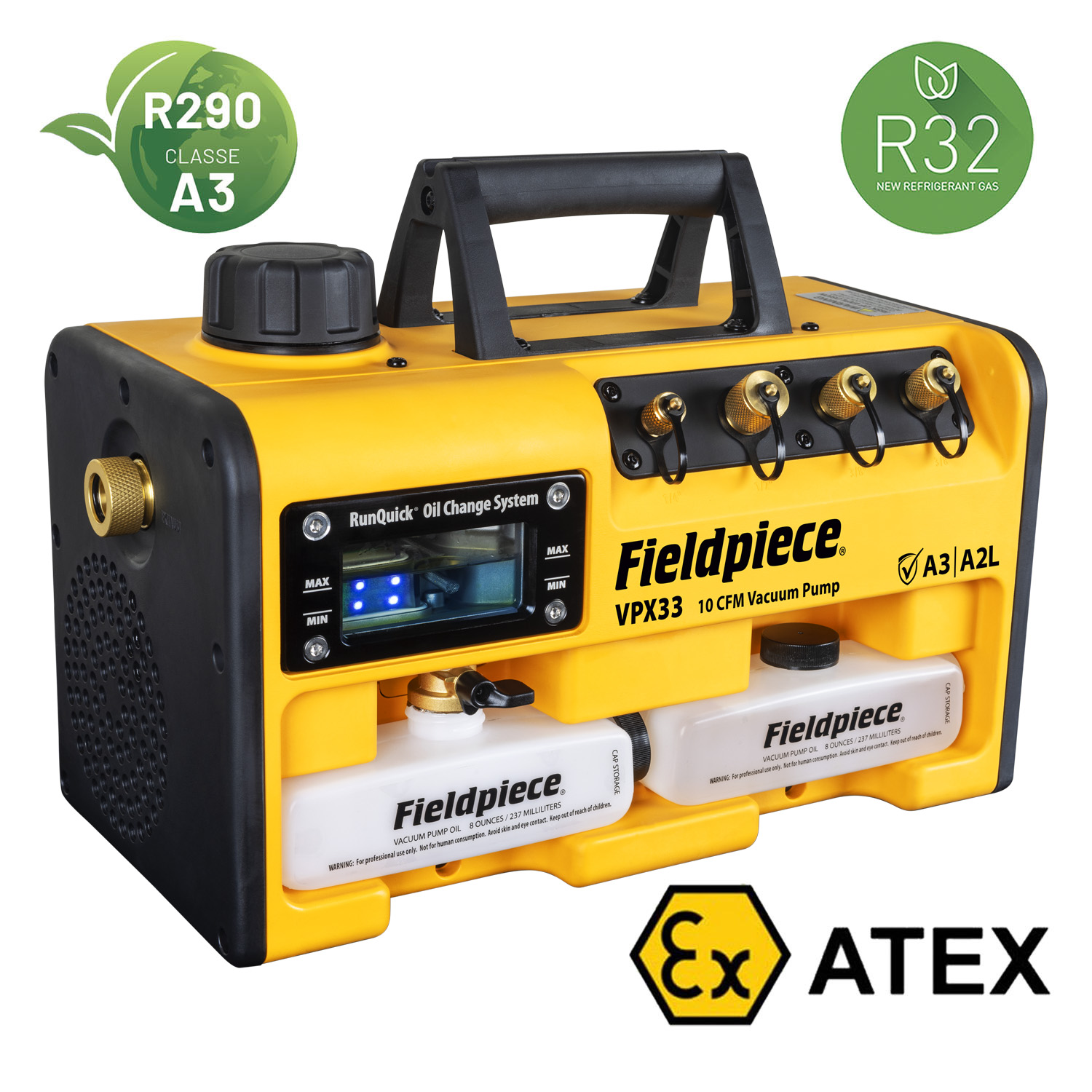

FieldPiece USA VPX33 – 283 liters/minute (17,0 cum/h - 10 CFM) Vacuum Pump
Reliable, versatile and powerful.
- ATEX rated, suitable for R290, R600a, A2L refrigerants, A1 refrigerants
- 283 liters/min. (17,0 cum/hour - 10 CFM) flow rate with 15 microns ultimate vacuum
- ¾ HP DC motor
- RunQuick™ Oil Change System offers on-the-fly oil change in seconds
- Backlit oil reservoir – allows you to view condition of oil and system
- Extra oil bottle storage
- Port Sizes: (1) 1/4”, (2) 3/8”, (1) 1/2” for easy hose connections
- Sturdy base stays upright
- Small footprint – 1,346 cubic inches
- Quarter-turn gas ballast with LED indicator
- Convenient, removable cord storage
NOTE: the pump can be equipped with a professional solenoid valve kit (made in Italy) with 3/8" SAE connection for pump connection and 3/8" SAE connection for connection to the empty pipe (a 1/2 SAE male outlet fitting is also included for connection to TruBlu specific vacuum pipes)
Shorter evacuations. More business.
Pick up a VPX33 Vacuum Pump if you want to make more service calls per day. This new lightweight, portable and powerful pump performs system evacuations faster, freeing you up to visit more customers. It has a wide, sturdy base, powerful motor and the legendary Fieldpiece toughness masters of the trade have come to expect.
The vacuum pump is fitted with a non-mechanical valve that opens to atmospheric pressure when the machine stops running, to ensure oil flowback to the system is prevented.
Change oil on the fly.
Since it’s a Fieldpiece vacuum pump, the VP67 uses our revolutionary RunQuick™ Oil Change System. This allows you to change the pump’s oil in 20 seconds without making a mess and without turning off the pump. Never lose vacuum again.
Small and mighty.
With a small footprint, the VP67 can go just about anywhere, along with its ½ HP AC motor that has all the power you need to quickly pull a deep vacuum. Plus, it comes with four in-line ports to make hose routing easy — even for three different size hoses.
You need one of the industry’s best pumps.
What’s Included
• (1) VPX33 Vacuum Pump
• (2) 237 ml (8 oz.) oil
• (1) EU plug
Specifications
- ATEX rated
- Flow Rate: 10CFM
- Oil Capacity: 8oz (237mL)
- Oil Compatibility:GeneralGas KryonVac or Fieldpiece Vacuum Pump Oil (Highly refined and optimized for proper sealing and lubrication)
- Oil Backlight: Blue LED
- Oil Drain: Ball valve
- Port Sizes: (1) 1/4”, (2) 3/8”, (1) 1/2”
- Compressor: Rotary vane, two stage
- Motor: 3/4 HP DC
- RPM: 2500
- Power Source: 190-260 VAC @ 50-60 Hz 1 phase
- Nominal Current Draw: 2.0 AAC
- Ultimate Vacuum at Input Ports: 15 microns
- Dimensions: 201 mm x 296 mm x 406 mm
- Weight: 12.0 kg
- Operating Environment:-1.1°C to 50°C (30°F to 122°F)

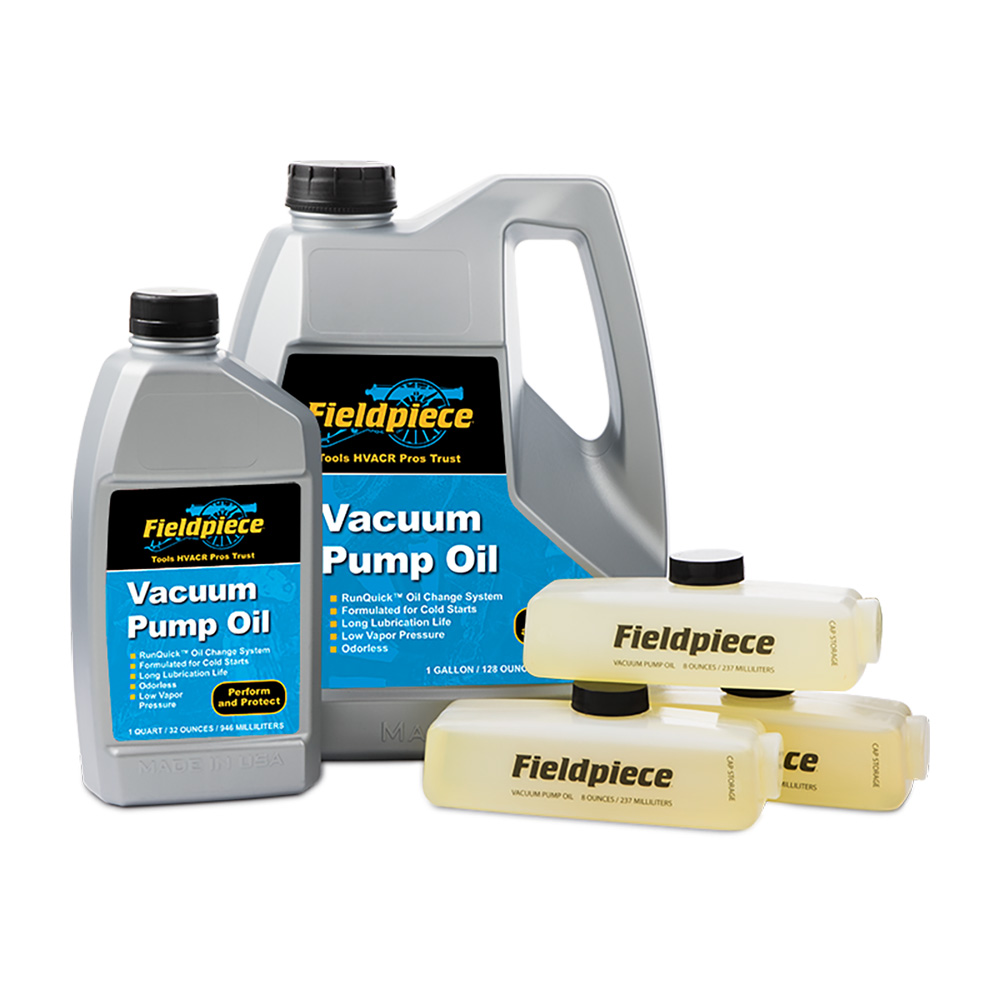

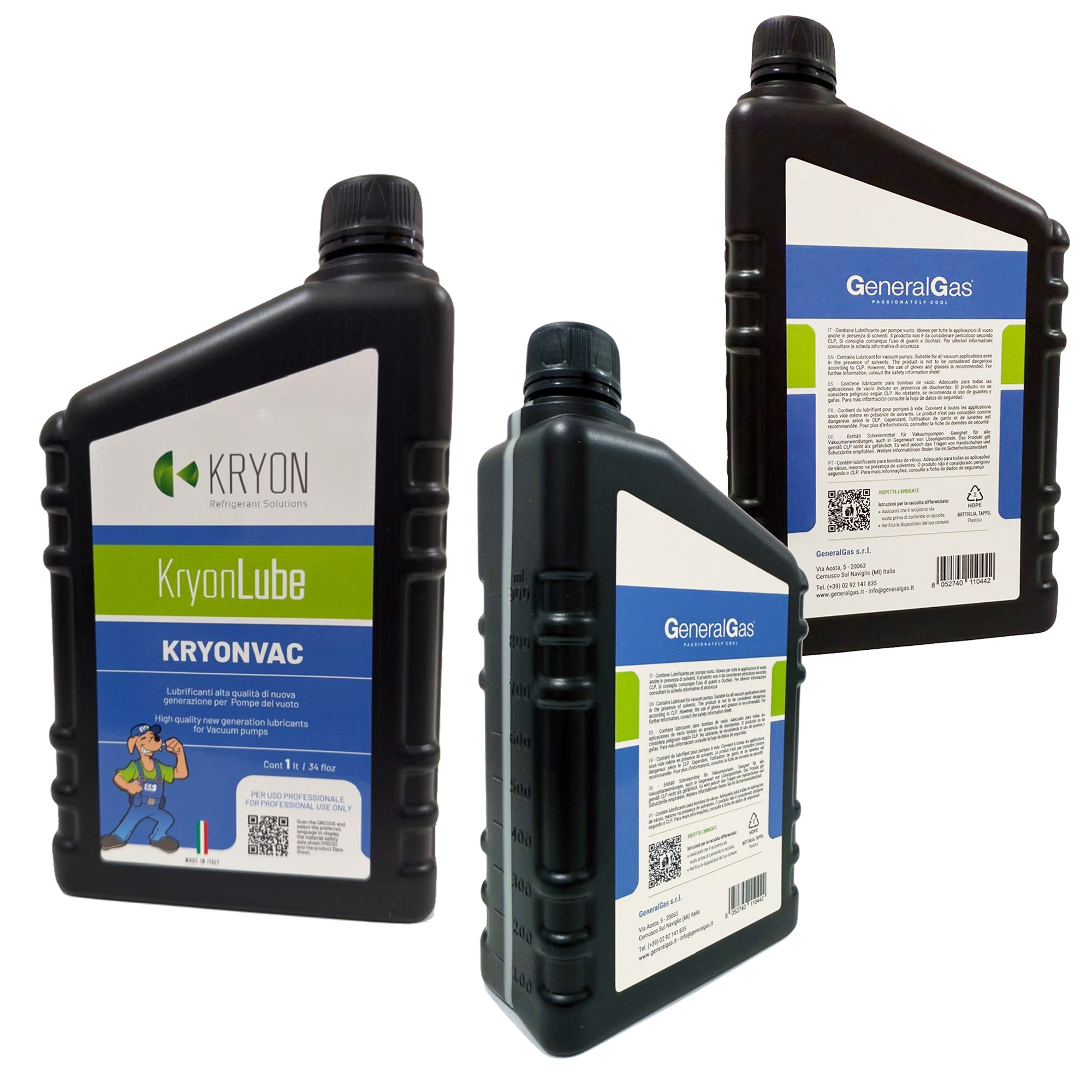

We recommend using GeneralGas KryonVac or Fieldpiece OIL32 vacuum pump oil (low vapor pressure, wide temperature range).
CERTIFICATE OF CONFORMITY
The FieldPiece vacuum pump is accompanied by a certificate issued by the manufacturer, which shows the serial number (from which the date of production can be obtained).
See example:
