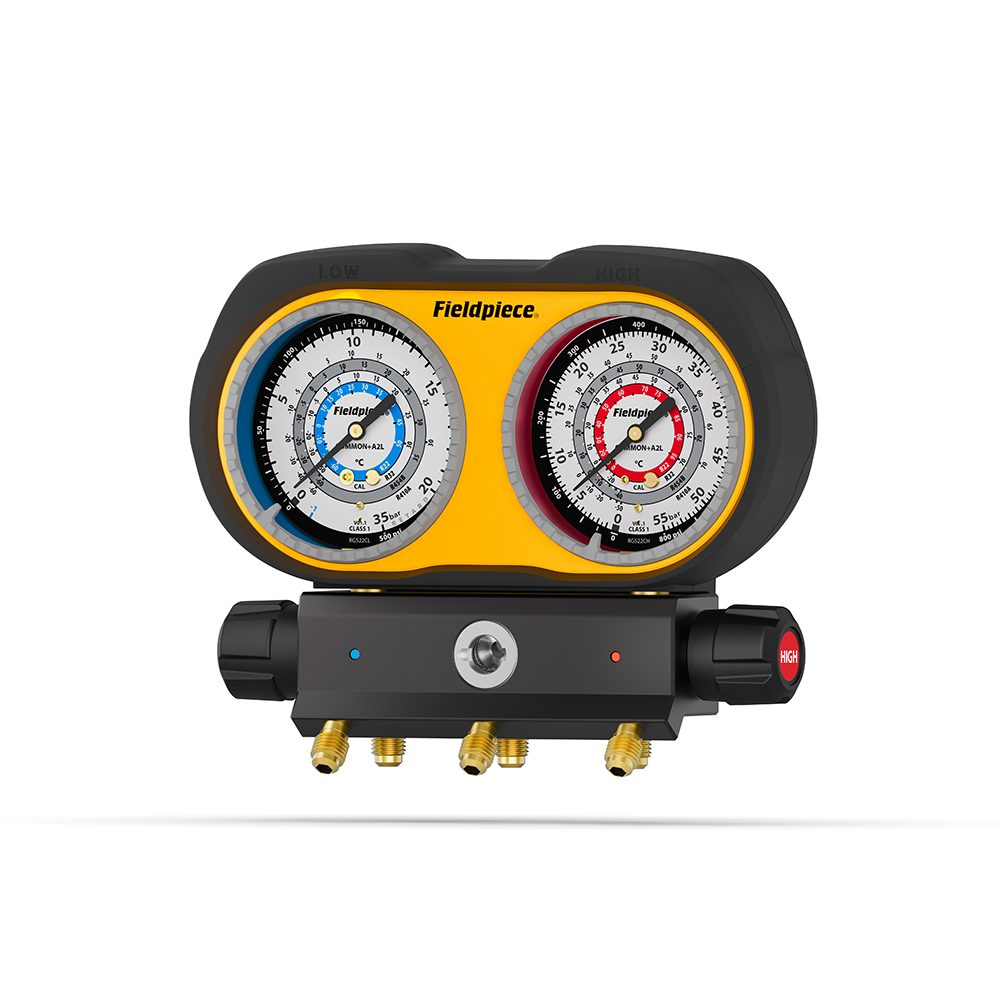

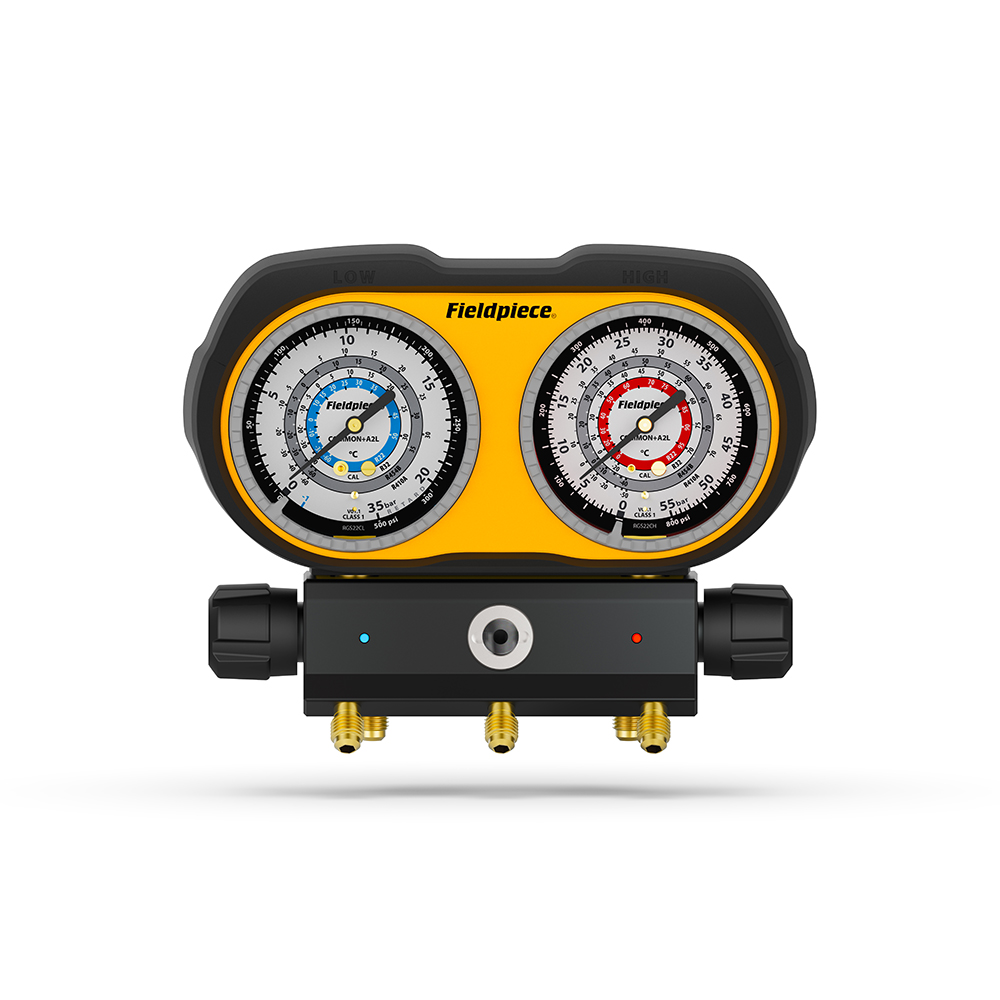

Fieldpiece analogue manifolds are rugged and dependable tools, designed to support you through every stage of the job: from system diagnostics to refrigerant recovery, evacuation, pressure testing, and charging.
Built to withstand the impacts and demanding conditions of the jobsite, they guarantee precise and consistent measurements, allowing you to work with total confidence every time.
3-Port Configuration
Pressure-tight SMAN® manifold block
Integrated sight glass for immediate monitoring of refrigerant flow
High-grip valve knobs for easy and secure operation
Piston valves for precise and reliable control
Maximum Versatility: 4 Refrigerants per Gauge Set
Choose the set that best fits your operational needs:
Set
Refrigerants Included
Set 1
R410A, R454B, R32, R22
Set 2
R134A, R407C, R404A, R448A
Set 3
R290, R600, R600A, R1270
Protection and Transport
Robust, anti-shock gauge bumpers
Hard carrying case included for safe and organized transport
Technical Specifications
Maximum Overload Pressure: 3000 psi (206 bar)
High Side Pressure Range: 0 – 55 bar (0 – 800 psi)
Low Side Pressure Range: -1 – 34 bar (30 inHg – 500 psi)
Low Side Overpressure Protection: 20 bar (300 psi)
Accuracy: ±1% of full scale, Class 1A
Operating Environment: -20 to 50 °C, <75% RH
Refrigerant Ports: (3) 1/4” SAE male flare fittings
